Engineered for safety, modern aesthetics, and extreme durability. Featuring IP65/IP66 waterproof ratings, integrated motion intelligence, and professional architectural profiles.
How Smart Technologies, Human-Centric Designs, and Material Innovations Are Transforming Outdoor & Commercial Spaces.
The global architectural and pathway lighting market is undergoing a structural transition driven by the convergence of solid-state lighting (SSL) technologies, IoT connectivity, and strict green building mandates such as LEED and WELL standards. Step and stair lights, once simple utilitarian safety elements, have evolved into sophisticated instruments of architectural expression and safety engineering. High-performance projects now demand low-voltage DC grids, motion sensors with progressive-dimming curves, and extreme-weather resistance packages.
According to recent industry analysis, the key macro-trends driving product demand include:
Modern lighting plans require precise beam distributions. Asymmetric lenses focus light downward, eliminating upward glare and light pollution while ensuring sufficient lux levels on the treads to reduce liability in public spaces.
PIR and radar motion sensor controllers (e.g., JIUAN 32-channel system) allow cascading cascade light effects, transitioning dynamically from 10% standby output to 100% illumination when a occupant approaches a step, reducing overall grid energy usage by up to 75%.
Exposure to coastal salinity, freeze-thaw cycles, and heavy pedestrian loading forces factories to upgrade their materials. Marine-grade die-cast aluminum with specialized multi-stage powder coating is replacing inferior plastics and low-grade zinc alloys.
What Professional Project Specifiers, Electrical Distributors, and Lighting Engineers Demand from Manufacturers.
Procurement departments for international commercial construction projects evaluate potential manufacturing partners based on a highly complex matrix of engineering tolerances, regulatory compliance certifications, and long-term warranties. A factory's ability to satisfy these stringent technical demands is what separates standard commercial-grade products from industrial-grade solutions.
| Procurement Criteria | Technical Expectation | How Certified Manufacturers Deliver |
|---|---|---|
| Weatherproofing & Ingress Protection | IP65, IP66, and IP67 ratings for continuous moisture exposure | Dual-silicone gasket interfaces, hermetically sealed LED light engines, and waterproof PG cable glands. |
| Mechanical Durability (IK Rating) | IK08 to IK10 impact resistance to withstand public vandalism and heavy steps | Thick tempered protective glass lenses and heavy-walled die-cast aluminum housings. |
| Electrical Safety & Low-Voltage Compliance | CE, RoHS, ETL/UL compliance. Class II SELV (Safety Extra Low Voltage) systems | Use of certified constant-voltage or constant-current LED drivers with over-temperature and short-circuit protection. |
| Photometric Control | Precise CCT selection (2200K - 4000K) and high Color Rendering Index (CRI > 85) | Binning-control of premium LED chips (e.g., Cree, Osram, or Lumileds) to ensure color consistency across large-scale projects. |
In addition to raw technical parameters, international B2B buyers require complete transparency in supply chain logistics and manufacturing documentation, including IES file availability for DiaLux simulations, product customization capacity (ODM length and profile modifications), and ISO 9001 certified production lines.
A trusted global supply partner providing innovative, energy-efficient, and certified outdoor solid-state lighting systems.
Jiangmen Dixon Lighting Co., Ltd. has been specializing in the outdoor lighting industry since 2007, with over 15 years of experience serving customers across North America, Europe, Australia, and other international markets. We are dedicated to designing, manufacturing, and supplying innovative, energy-efficient, and reliable outdoor lighting solutions for residential, commercial, and landscape applications.
Our company operates from a modern production facility covering more than 5,000 square meters and employs over 100 experienced staff members. Supported by a professional R&D team, an efficient sales team, and a responsive after-sales service department, we are able to provide comprehensive support throughout every stage of a project, from product development and customization to delivery and technical assistance.
To ensure consistent product quality and efficient production management, Dixon Lighting has implemented an advanced ERP management system and follows strict ISO quality control standards. Our products have obtained internationally recognized certifications, including CE, RoHS, and ETL, issued by leading testing organizations such as TUV and Intertek. These certifications demonstrate our commitment to safety, quality, and compliance with global market requirements.
Over the years, Dixon Lighting has developed a diverse portfolio of outdoor lighting products. Our main product categories include security flood lights designed to improve safety and visibility around homes and commercial properties, motion sensor outdoor lights that provide intelligent and energy-saving illumination, as well as up and down wall lights that enhance architectural aesthetics. We also offer step and stair lights, deck and patio lights for outdoor living spaces, solar gutter lights that combine sustainability with practicality, and landscape well lights that beautifully accent gardens, pathways, and landscape features. All products are engineered with a focus on durability, weather resistance, energy efficiency, and modern design.
Innovation remains at the core of our business philosophy. We continuously invest in product development and manufacturing improvements to meet the evolving needs of the global lighting market. Whether for OEM, ODM, or customized lighting projects, Dixon Lighting is committed to delivering reliable products, competitive solutions, and outstanding customer service.
Our aim is to survive through quality, develop through innovation, and build long-term partnerships based on trust, professionalism, and mutual success. With a strong commitment to excellence, Jiangmen Dixon Lighting Co., Ltd. strives to be a trusted partner for customers worldwide and a leading manufacturer in the outdoor lighting industry.
A visualization of our end-to-end manufacturing workflow, integrating advanced robotics, strict quality control gates, and ERP-driven efficiency.
To succeed as a high-quality global supplier, Dixon Smart Lights relies on vertical integration. Our manufacturing processes are managed under strict ISO guidelines, combining heavy-duty machining with precision electronics assembly. Every step, from raw ingot processing to final high-load aging tests, is performed under a single unified facility to ensure the final product meets the design life expectations.
Adapting electrical design, structural housing, and safety options for markets in North America, the EU, and Oceanic costal environments.
Architectural lighting design is not one-size-fits-all. Different geographical locations present varying electrical systems, environmental loads, and regulatory criteria that manufacturers must design around to achieve flawless local integration.
Projects here demand low voltage 12V AC/DC configurations or 120V line voltage systems listed under ETL or UL standards. ADA (Americans with Disabilities Act) compliance requires recessed designs that do not protrude more than 4 inches into pathways.
European specifiers favor SELV (Safety Extra Low Voltage) 24V DC systems combined with class II isolation drivers. Standard structures often require compliance with EN 60598-2-22 safety regulations for emergency escape routes.
High-salinity zones require electrophoretic, marine-grade architectural paints applied over high-purity aluminum alloys. Silicone gaskets must resist continuous UV degradation to prevent micro-condensation inside the optical lens box.
How Dixon stair lighting systems provide high optical integration in high-end developments, public spaces, and smart pathways.
Step and stair lights function under dynamic environment loads. The choice of fixture, installation style, and output parameters must match the functional realities of the site. Here is how our production varieties fit different high-level applications:

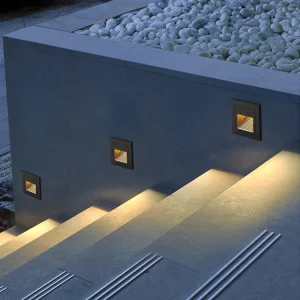

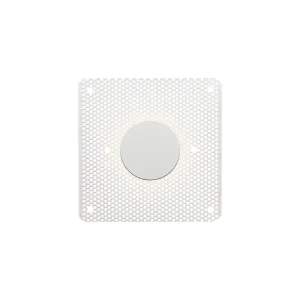

In resort walkways and poolside steps, harsh white lighting ruins the guest experience. Lighting designers integrate low-glare, recessed wall lights with Warm White CCTs (2200K - 2700K). Dixon's 3W recessed square stair lights throw light directly down at the footstep, ensuring a dark-sky environment while safely illuminating high-risk steps.
Subway entrances, outdoor amphitheaters, and commercial shopping centers present heavy physical wear and potential vandalism. The engineering spec requires IK10 heavy-duty housings. Our linear in-ground step lights and T-shape aluminum stair nosing profiles protect the physical stair edge while casting high-lumen, uniform lines of light that guide large crowds safely.
Smart homes require smart energy conservation. Leveraging the JIUAN 32-channel cascade controller system allows builders to install low-voltage led stair lights that switch on sequentially, floor-by-floor or step-by-step, as sensors detect foot traffic. This integration reduces energy consumption and provides modern luxury appeal.
Answering critical design, thermal management, installation, and procurement questions for B2B buyers.
A1: Safety and installation flexibility. Outdoor step lights operate close to the ground, where water pooling and physical damage are common. Low-voltage (12V/24V) systems are classified as Class II SELV, eliminating shock risk even if water compromises the fixture. Furthermore, low-voltage wiring does not require deep trenching or conduit protection in many municipal building codes, reducing installation labor costs.
A2: Our waterproof performance is guaranteed through mechanical design and testing. We use high-precision CNC machining to ensure flat sealing interfaces, combined with compression-molded silicone gaskets that maintain elasticity across extreme temperature fluctuations (-20°C to +50°C). We also design potting channels for sensitive driver electronics and run 100% of our production runs through a physical vacuum-sealed water testing chamber before packing.
A3: The JIUAN controller uses dual-endpoint PIR sensors to track human entry. As a person approaches the bottom or top of the staircase, the controller sends sequential PWM signals down the 12V/24V lines, lighting each step sequentially. The controller supports custom adjustments for fading speed, hold times, and maximum brightness levels up to a total load capacity of 500W.
A4: Standard aluminum oxidizes when exposed to rain and coastal air, leading to coating peeling and structural failure. Dixon uses 6063-T5 architectural-grade aluminum and applies an electrostatic powder coating process. This ensures the dry-film thickness (DFT) is uniform, creating an anti-corrosion barrier that prevents salt-spray ingress and extends the cosmetic life of the fixture to over 5 years.
A5: Backed by our CNC machining center, injection tooling facility, and R&D department, we support full custom development. Customers can request customized light guide lengths, custom aluminum profile designs, integrated motion sensors, or specific LED color rendering indices (CRI > 90). We provide complete 3D drawings, prototype verification, and ETL/CE certification support for custom designs.
Explore more specialized lighting configurations: aluminum extrusions, smart control channels, and deep-recessed wall-wash layouts.
