| Item No. | Light source | Lens beam angle(°) | Consumption(watt) | Input Voltage(V) | Ik rate |
|---|---|---|---|---|---|
| 817187 | SMD3528*18 | N/A | 2.5 | DC12V/DC24V AC100-240V |
10 |
| 817068 | 1*6W LED | N/A | 6 | DC12V/DC24V AC100-240V |
10 |
| 817037 | SMD5050*3 | N/A | 1.8 | DC12V/DC24V AC100-240V |
10 |
| 817058 | 1*5W LED | N/A | 5.5 | DC12V/DC24V AC100-240V |
10 |
| Material specifications | |
|---|---|

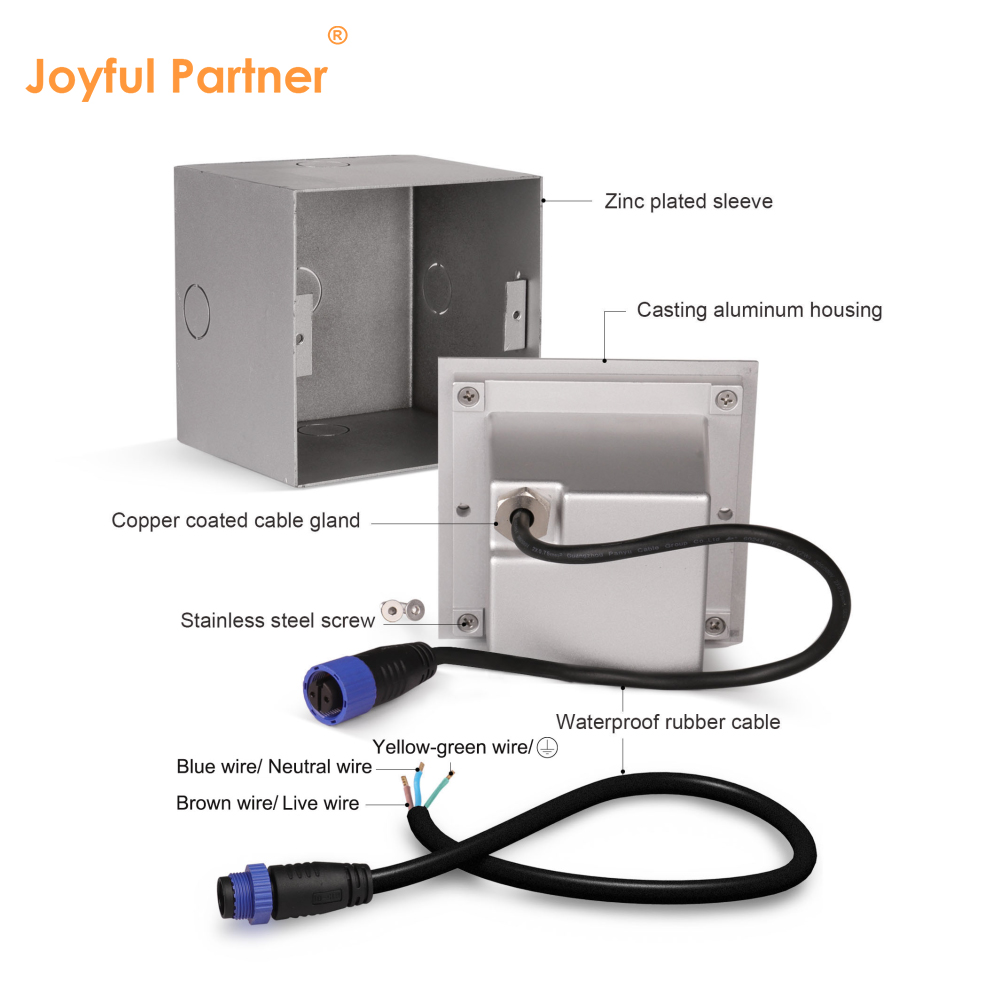

| Housing | Made of ADC12#Die-casting outdoor powder coated aluminum |
| Front cover | Made of ADC12#Die-casting outdoor powder coated aluminum |
| Glass | Tempered glass.T=3mm |
| Cable gland | IP67 Copper and nickel coated |
| Gasket | Tooling shaped seal |
| LED | SMD LED or COB LED,Ra>80 |
| PCB | Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk |
| Driver | Constant current output |
| Operating temperature | -20℃ ~ 40℃ |
| Power cable | H05RN-F2*0.75mm²L=0.3m(low voltage) H05RN-F3*0.75mm²L=0.3m(high voltage) |
