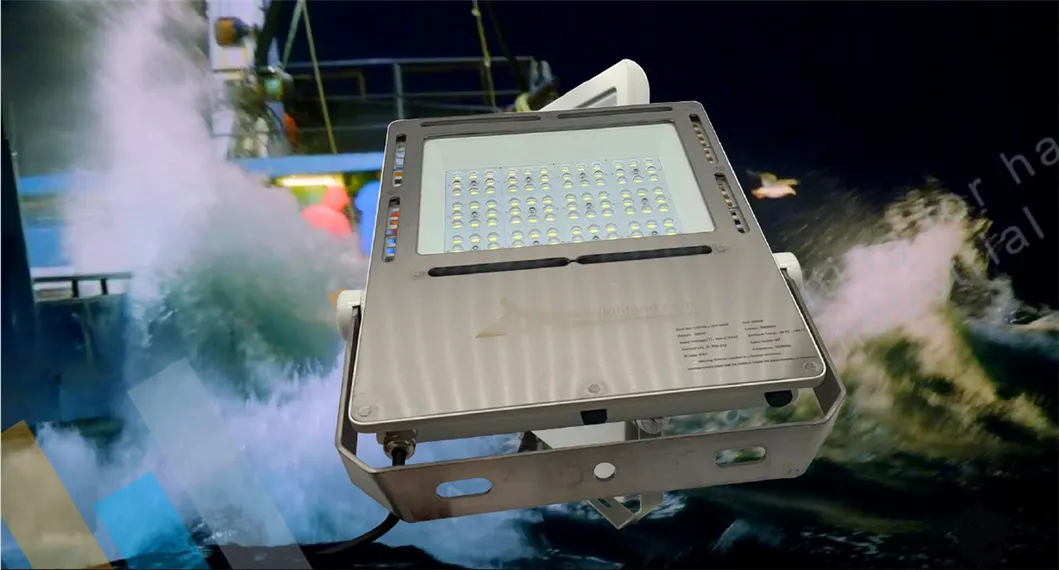

FA Series LED Floodlights | High-Performance Industrial & Marine Lighting Solutions
The FA Series LED Floodlight is an ideal replacement for traditional metal halide and halogen fixtures. Designed for industrial, marine, parking lot, warehouse, street, billboard, building façade, and security lighting, it combines powerful performance, versatile optics, and superior durability to meet the most demanding lighting applications.
Key Features:
Applications:
The FA Series is engineered for long-term reliability, extreme weather resistance, and superior performance, making it a perfect choice for high-standard lighting projects worldwide.
About FA Series

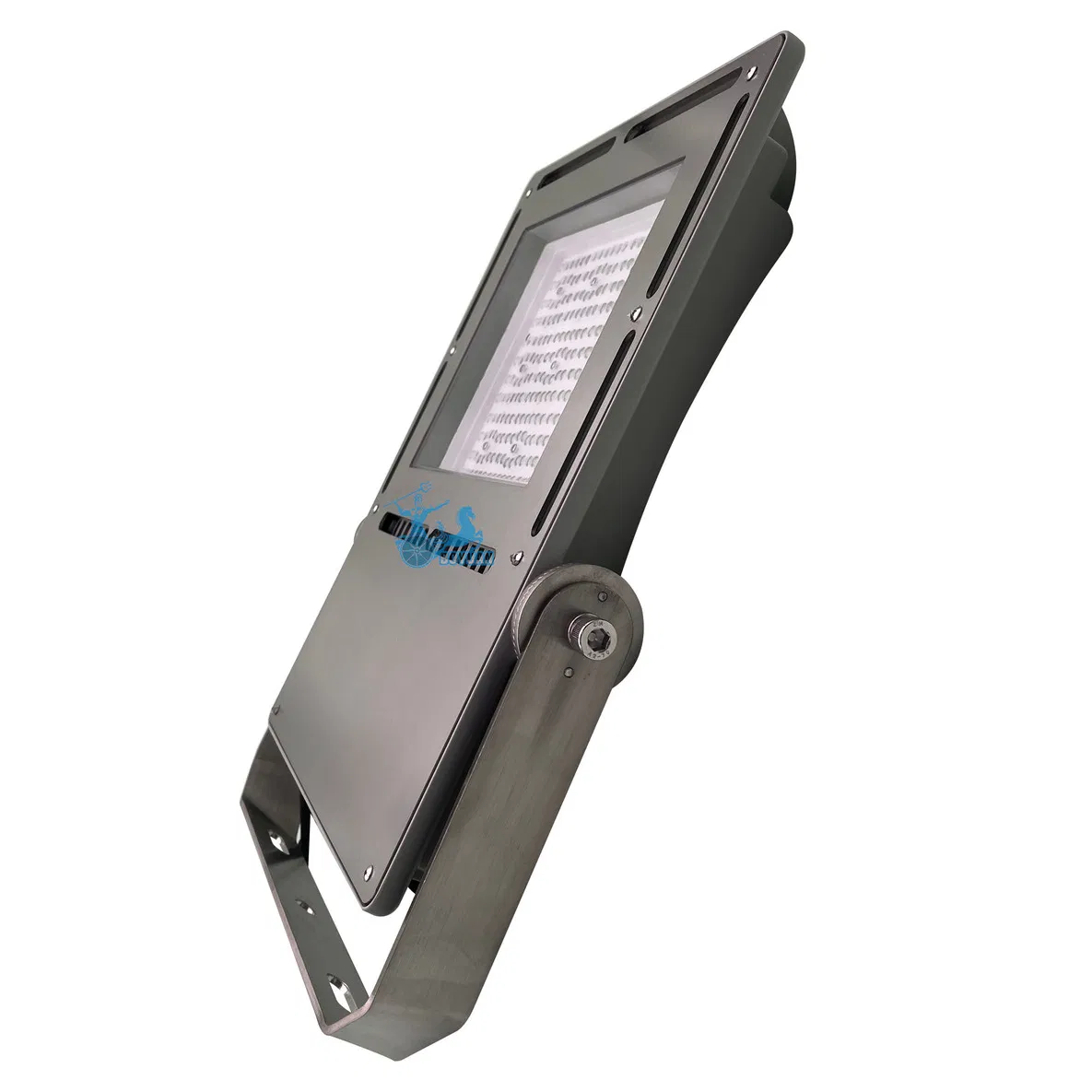

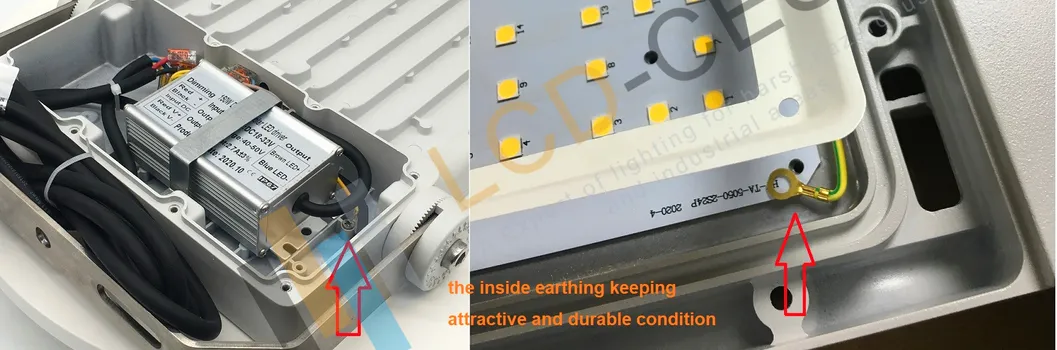

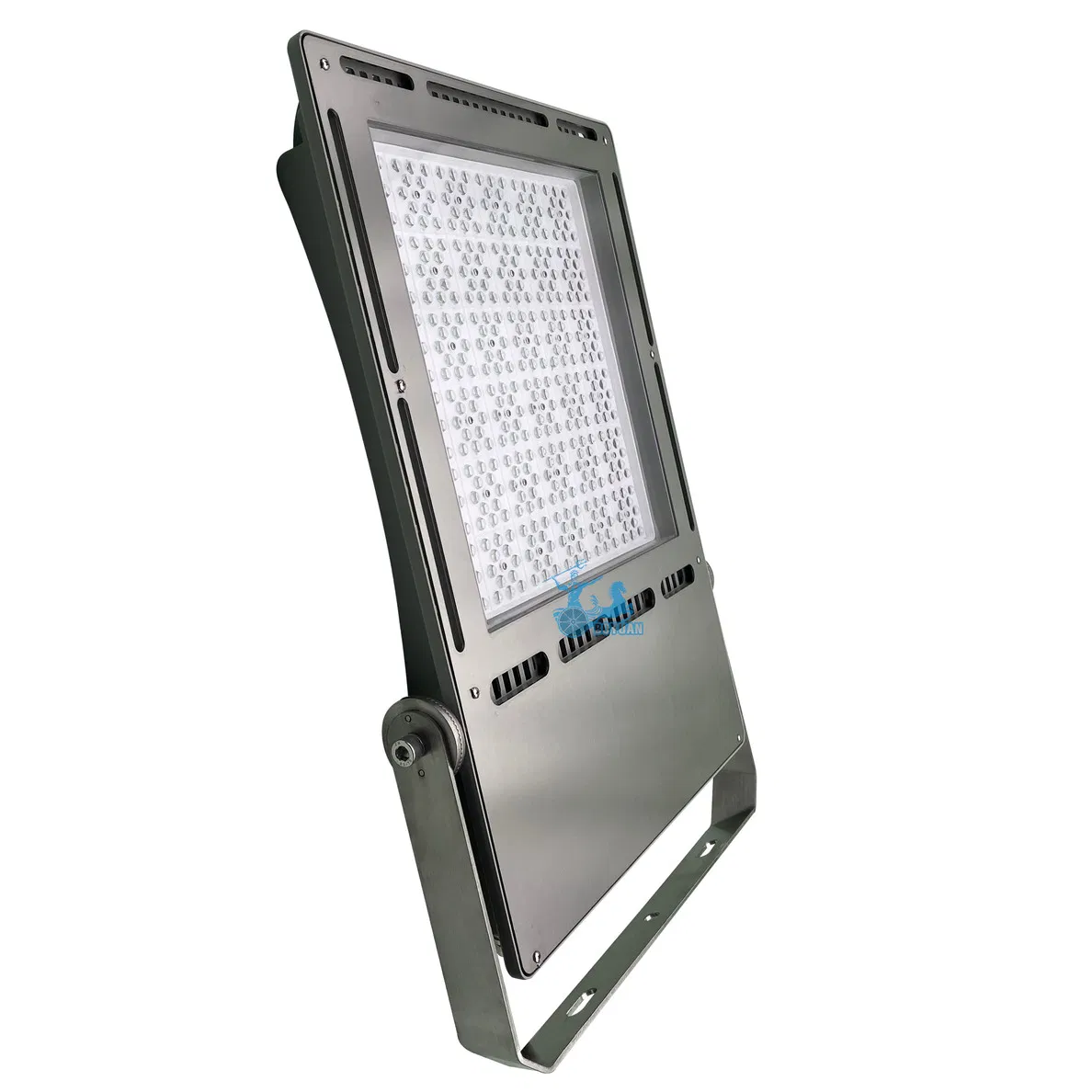

FA Series LED Floodlight, a professional, powerful, energy saving replacement for high intensity discharge lamps or Halogen lamp. With a compact and modern design, Ph® SMD 5050 LED technology offers high brightness, a high lumen maintenance factor with MEANWELL driver and built in 3-4kV surge suppressor. We have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.

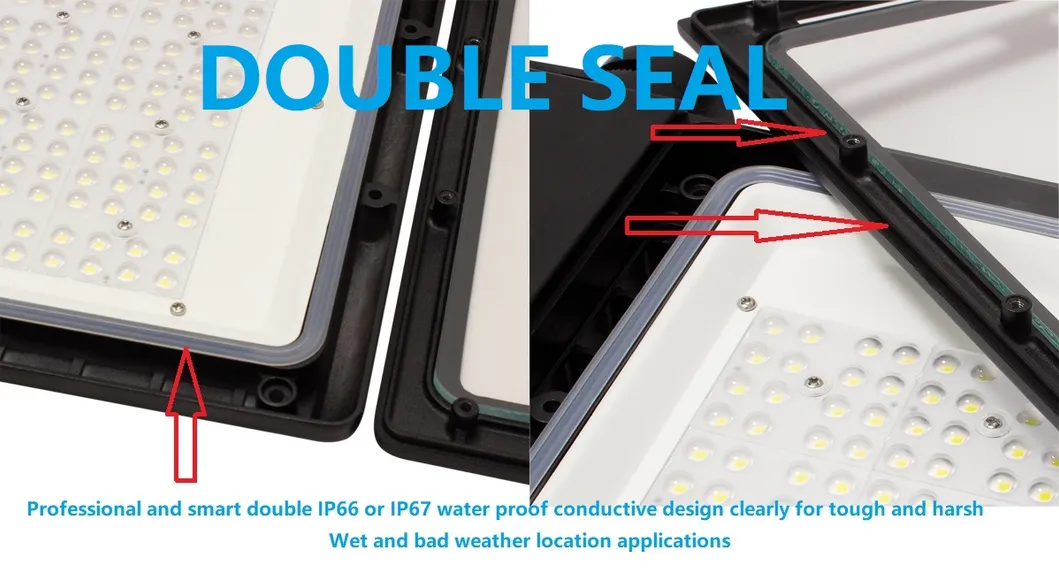

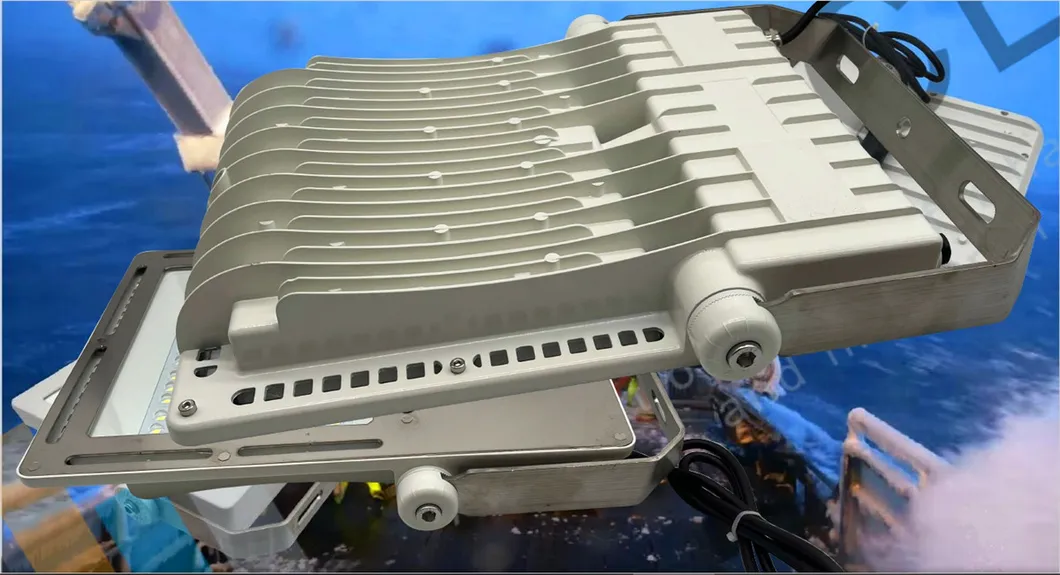

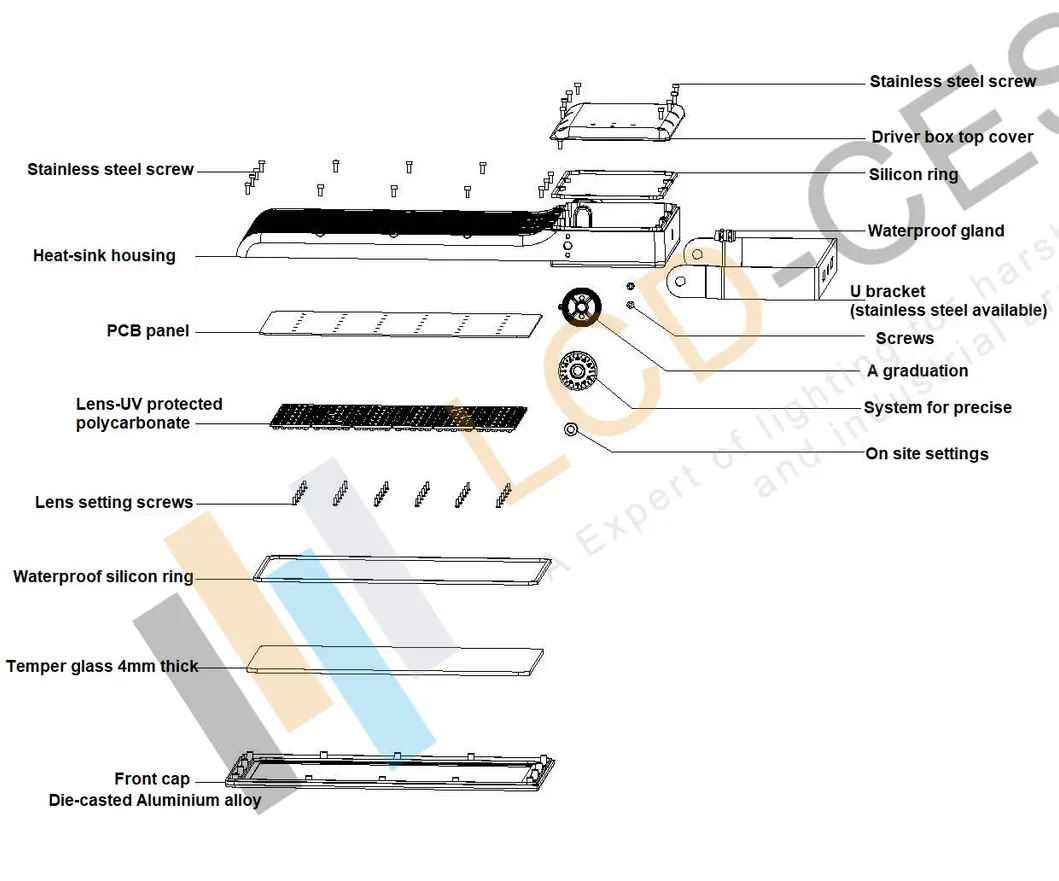

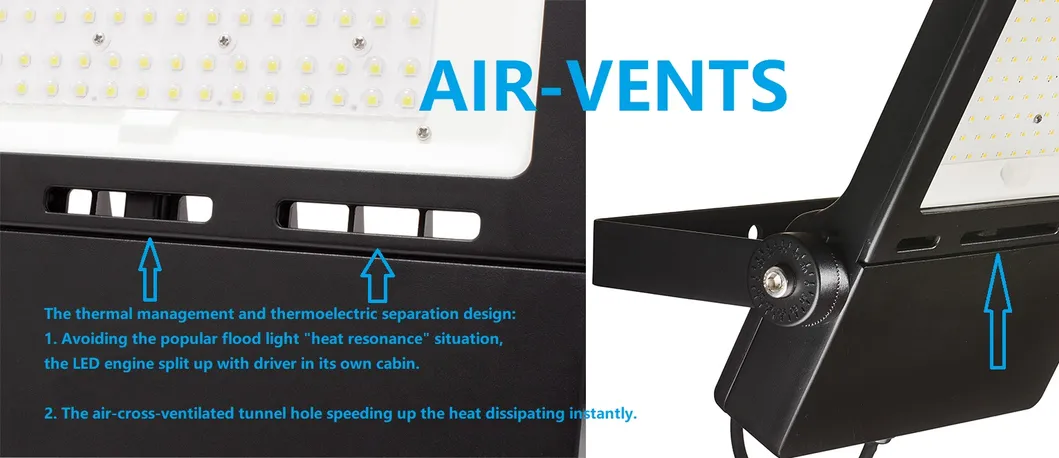

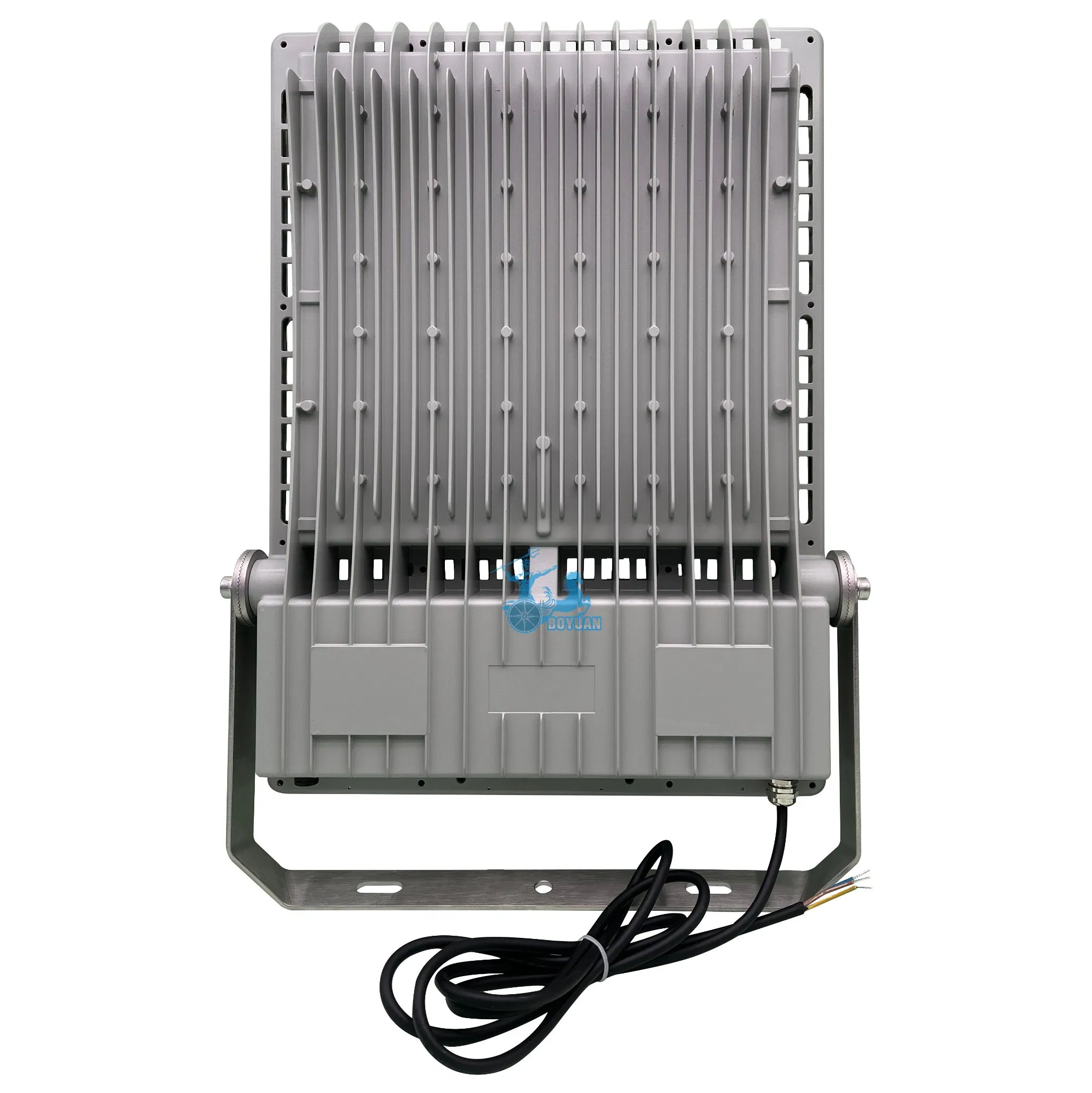

Strong housing made of white, grey or black die-cast aluminum, featuring high heat dissipation and superior aesthetics. Corrosion resistant with longer lifetime. Tempered glass, much stronger than regular glass, reduces the risk of injury caused by jagged glass shards. Impact resistant IK08 grade and protection rating IP66 IP67. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. Universal voltage capacity 100-277V 50/60Hz or 12-32VDC.
Key Features Detail:
Ideal for applications such as:

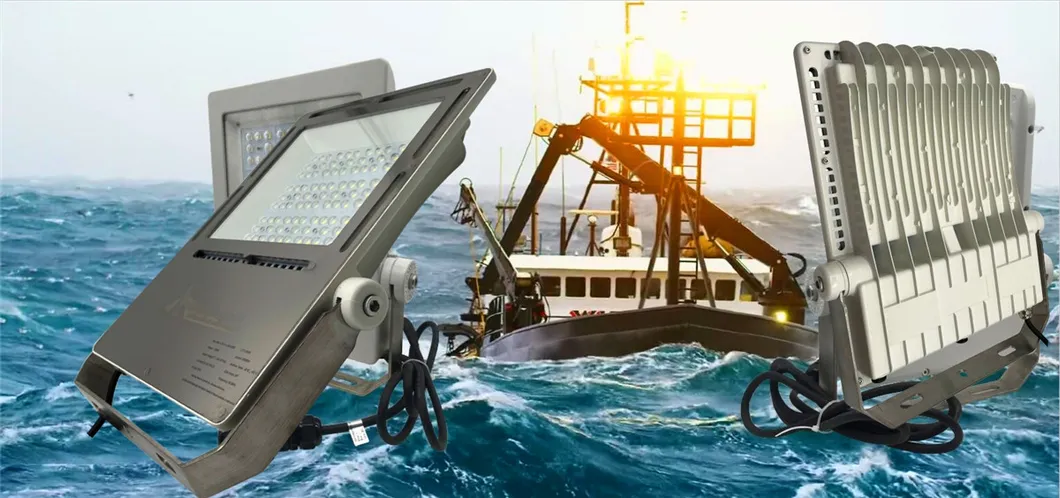

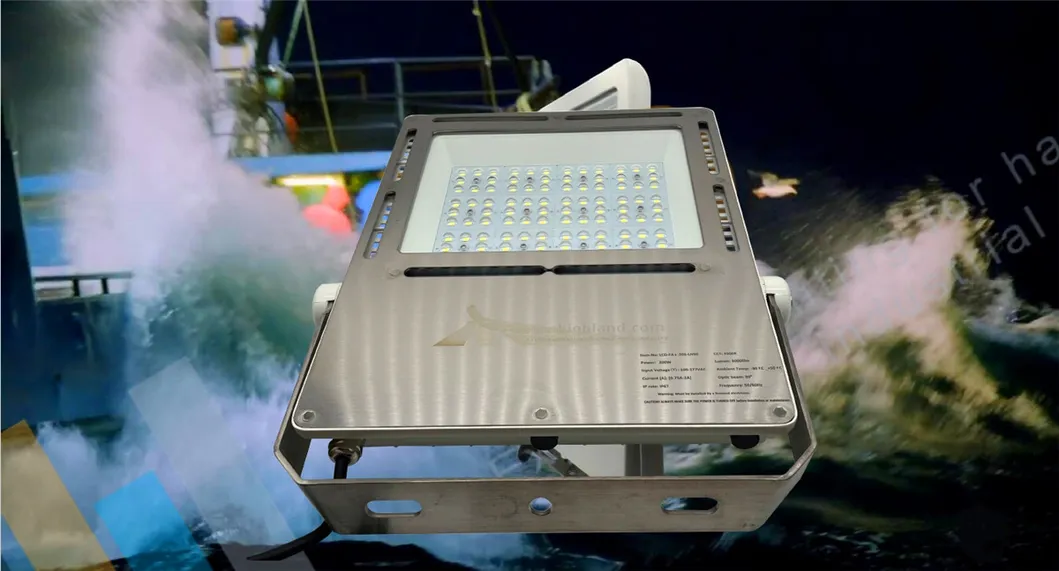

1. FISH PROCESSING LIGHTING, Maritime Applications, Crabbing boat, Seiners boat, Trawler boat fishing lighting
2. Landscapes, accents, security and general wide area lighting for commercial and residential use.
100W Floodlight Datasheet (FA-105 & 103)
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product | 100W Floodlight | Code | FA-105 & 103 |
| Color Consistency (SDCM) | <5 | Power Consumption (W) | 100W |
| Brightness (lm) | 15000lm | Halogen Equivalent(W) | 600-800 |
| LED Quantity | 48 | Light Color | Daylight White |
| Color Temperature (K) | 2700K-6500K | Dimmable | Non-dimmable or dimmable |
| CRI | > 70 | Beam Angle (Degree) | 15°, 30°, 60°, 90°, 120° |
| Input Voltage (v) | 100-305V AC | Frequency (hz) | 50/60Hz |
| Power Factor | > 0.95 | Material | Temper Glass, Aluminum alloy |
| Waterproof | IP66, IP67 or IP68 | Protection Rating | IK08 (Impact resistant) |
| Package Quantity | Pack of 1 Unit | Warranty | 5-7 Years |
Product Dimensions (AxBxC mm):
| Item Name | AxBxC (MM) |
|---|---|
| FA-085/105/153 IP67 flood light | 389.2x296.7x57 |
| FA-205 IP67 flood light | 436.6x345.7x57 |
| FA-255 IP67 flood light | 436.6x345.7x57 |
| FA-305/353 IP67 flood light | 582x385x60 |
Weight Breakdown (kg):
| Item Name | Weight (KG) |
|---|---|
| FA-085/105/153 IP67 flood light | 3.4 |
| FA-205 IP67 flood light | 4.8 |
| FA-255 IP67 flood light | 7.2 |
| FA-305/353 IP67 flood light | 7.5 |

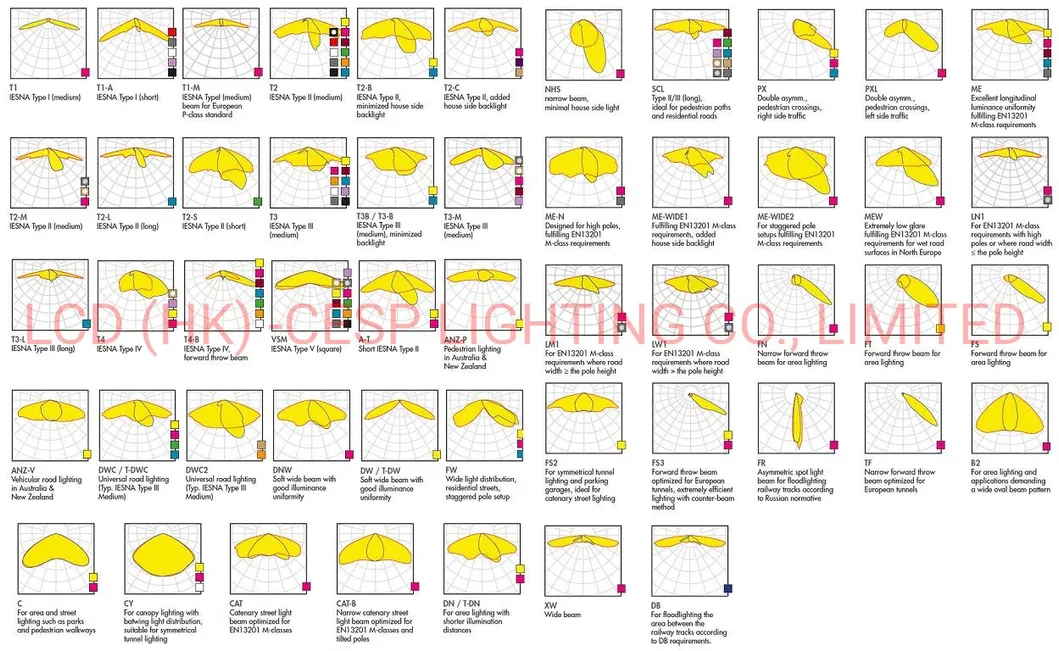

Available Photometric Distributions:
Rated initial chromaticity co-ordinate values:
• 4000K - CIE(x= 0.38, y= 0.38) 5SDCM
• 6500K - CIE(x= 0.34, y= 0.35) 5SDCM

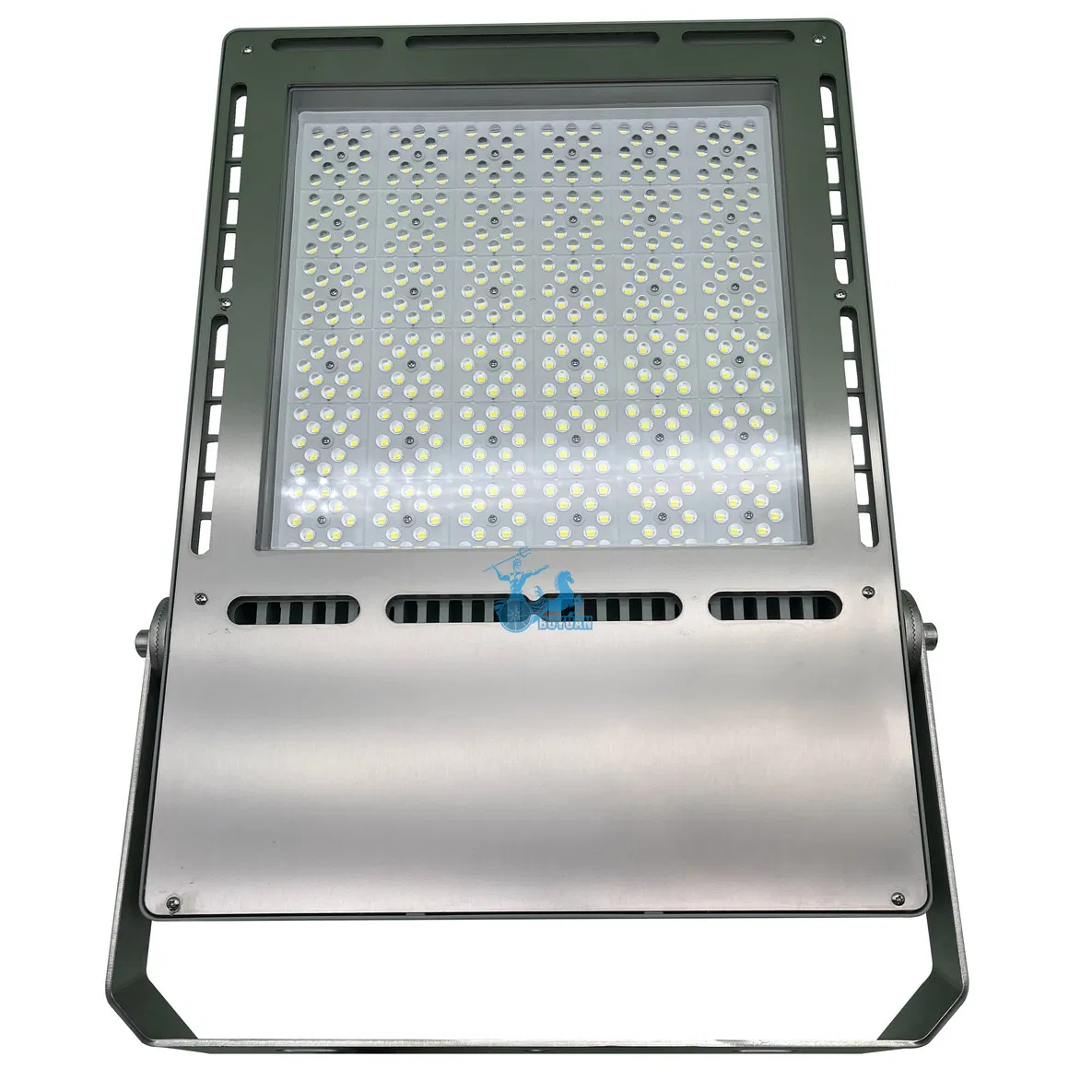

Commercial and outdoor stadium floodlights ranging from 50W to 1500W. Includes 400W twin floodlights, motion sensor configurations, high quality SMD3030 chips, and options optimized for parking lots, off-road applications, and specialized aquarium setups.
Basic Info (Model: LCD-SCH-Module50-100)
| Model NO.: | LCD-SCH-Module50-100 | Color Temperature: | Warm white/ Cool White/ Naturel white |
| Lamp Body Material: | Aluminum Alloy | Power: | 50W-500W |
| Projection Distance: | >8m-40m | Application: | Park, Square, Factory, Garden, Stadium, oil & gas plant, chemical plant, Mining |
| IP Rating: | IP65 / IP66 / IP67 | Certification: | CE, CQC, EMC, LVD, RoHS, TUV, ATEX, IECEx |
| Operating Voltage: | 30-46VDC | Input Voltage: | 90-360VAC |
| LED Chips Brand: | High quality Cree / bridgelux | Rated Power: | 50-500W |
| Beam Angle: | 15, 20, 60, 120, 140 Degree | Replace HID / HPS: | 400-3000W |
| Working Humidity: | 10%-95% | Insulation Class: | Class I |
| Power Factor: | >0.95 | THD: | <15% |
| Working Frequency: | 50 / 60Hz | Coating: | Powder Coated ---yellow |
| Net Weight: | 7KG-39KG | Trademark: | LCD brand |
| Transport Package: | 1 Unit Per Carton | Ex mark: | Exdemb IICT4/T6 |
| Mounting way: | Bracket / suspend / pole | HS Code: | 9405429000 |
Features & Characteristics:
Typical application: Sea Port | Airport | Bridge | Architecture | Gas & Chemical Industrial Facility | Stadium | High Mast | Plaza | Oil Industrial | Professional Lighting
50-500 Watt LED Floodlight Datasheet Details:
| Model Parameter | SCH-Module50-50 | SCH-Module50-100 | SCH-Module50-150 | SCH-Module50-200 |
|---|---|---|---|---|
| Beam Angle | 15° | 20° | 60° | 120° |
| Stable Flux (5700K) | 100,000lm | 105,000lm | 110,000lm | 120,000lm |
| Dimension | 671X405X374mm | 671X405X322mm | 671X405X204mm | 671X405X204mm |
| LEDs Power Consumption | 45-450W | |||
| Driver Power Consumption | 5-50W | |||
| Total Power Consumption | 50-500W | |||
| Replace HID Lamp | 200W-3000W | |||
| Housing Finish | Cathode EPD Aluminum Alloy | |||
| Working Temp / Humidity | -30°C to +50°C / 10% to 95% RH | |||
| Warranty | LED Module & Driver: 5-7 Years, Housing: 10 Years | |||
