1 / 5

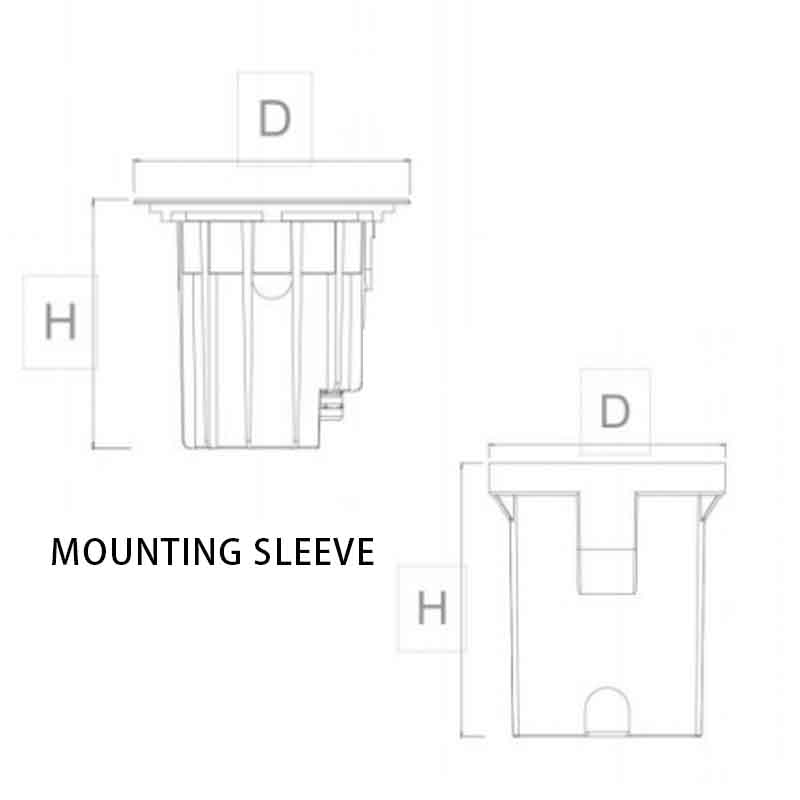

| Product code | Lamp | Power | Lumen | Beam Angle | CCT | Dimming Type | Diameter |
|---|---|---|---|---|---|---|---|
| MDDM6024-00 | 1LED | 1*12W | 950Im | 28*70° | W27|30|40 | ND I DI I DA | Ø130*H139mm |
| MDDM6056-00 | 1LED | 1*27W | 1950lm | 28*70° | W27|30|40 | ND I DI I DA | Ø173*H156mm |
| MDDM6088-00 | 1LED | 1*36W | 2450lm | 28*70° | W27|30|40 | ND I DI I DA | Ø210*H176mm |

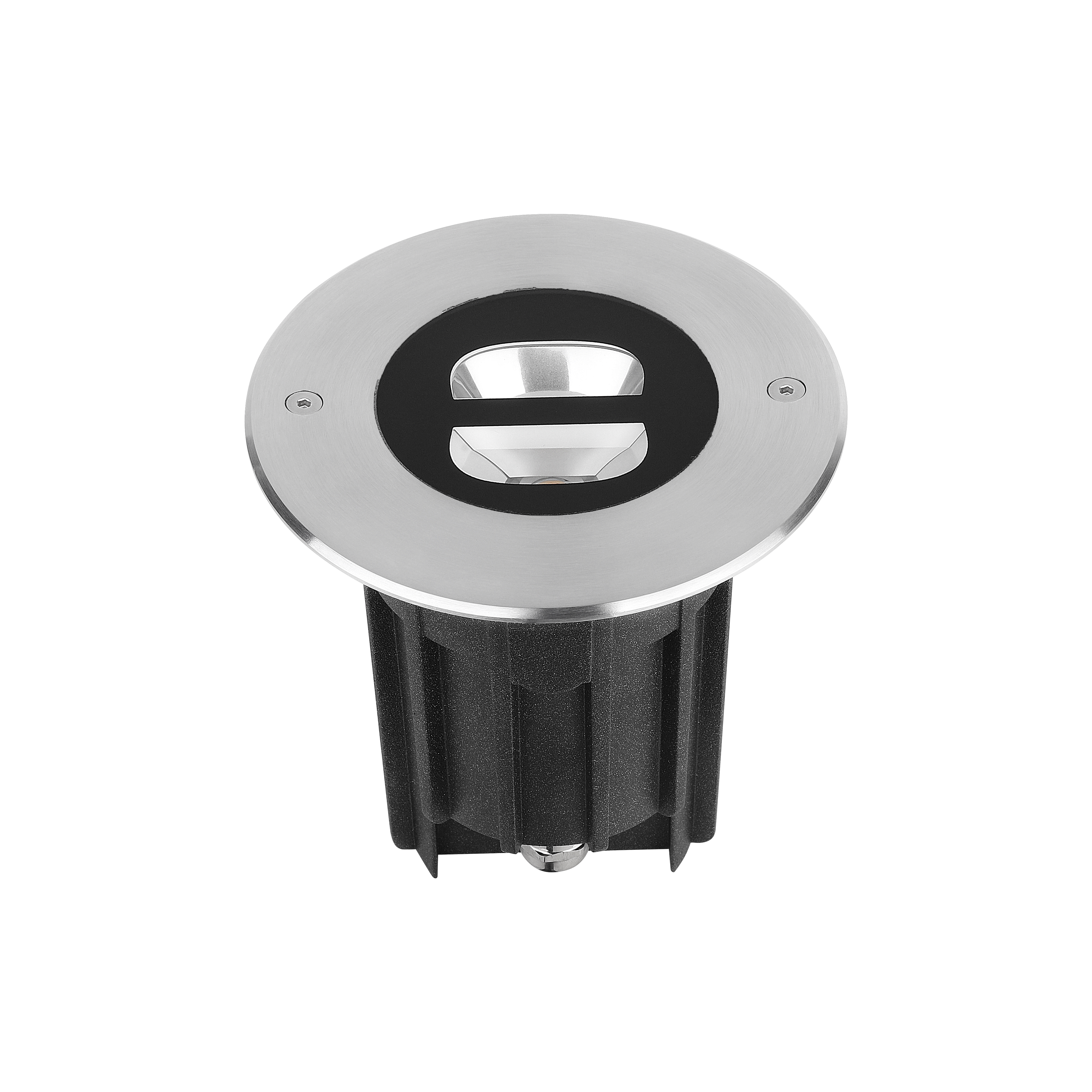

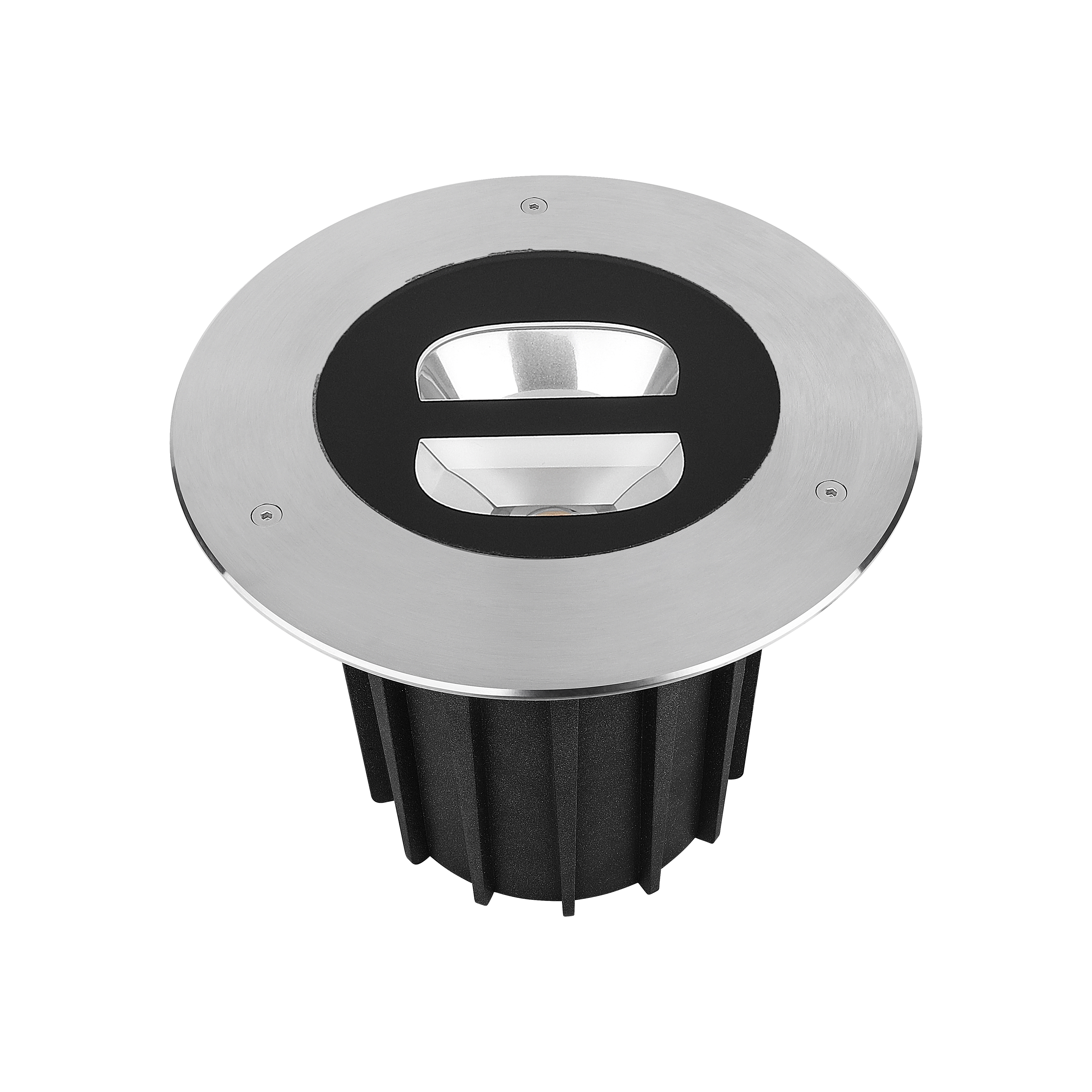

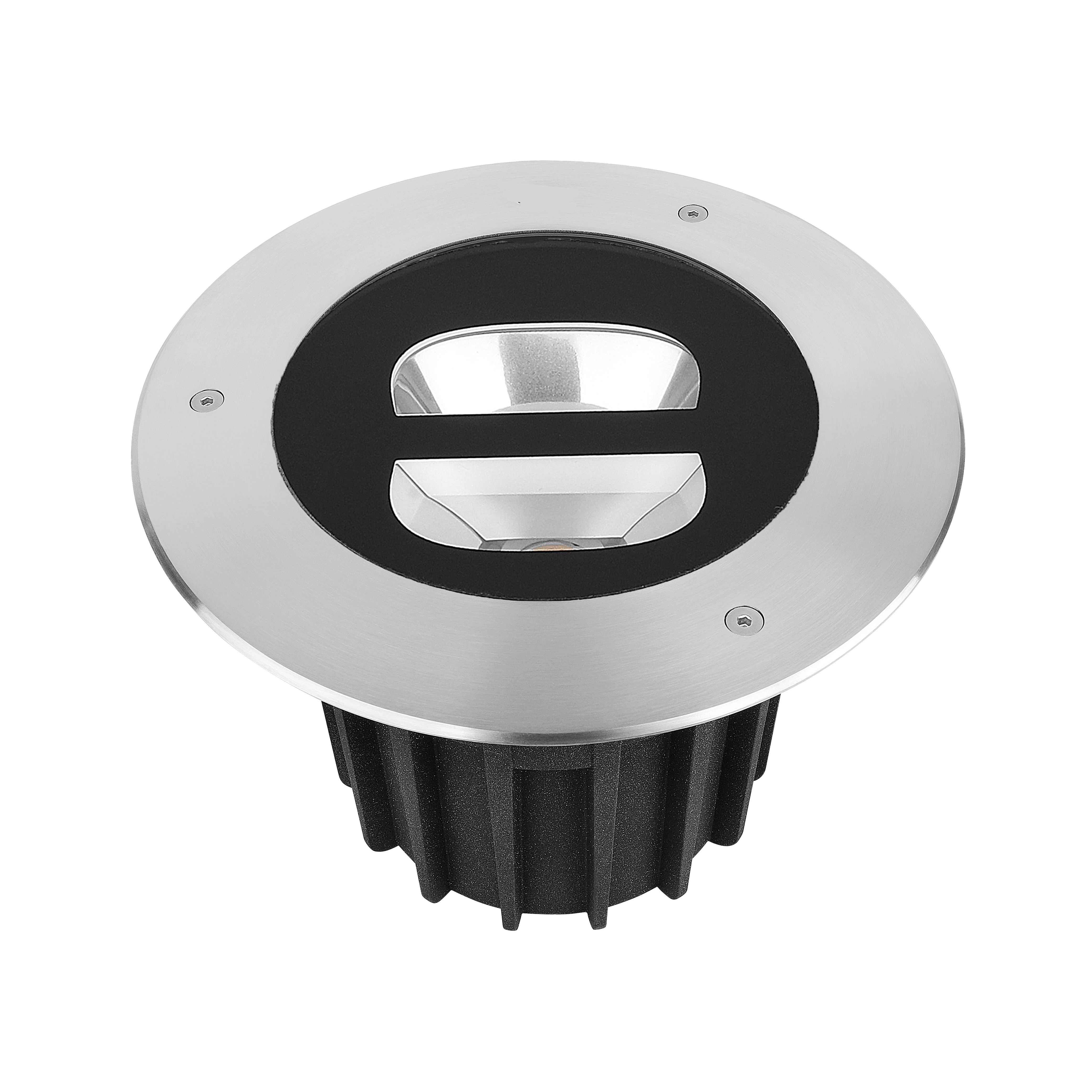

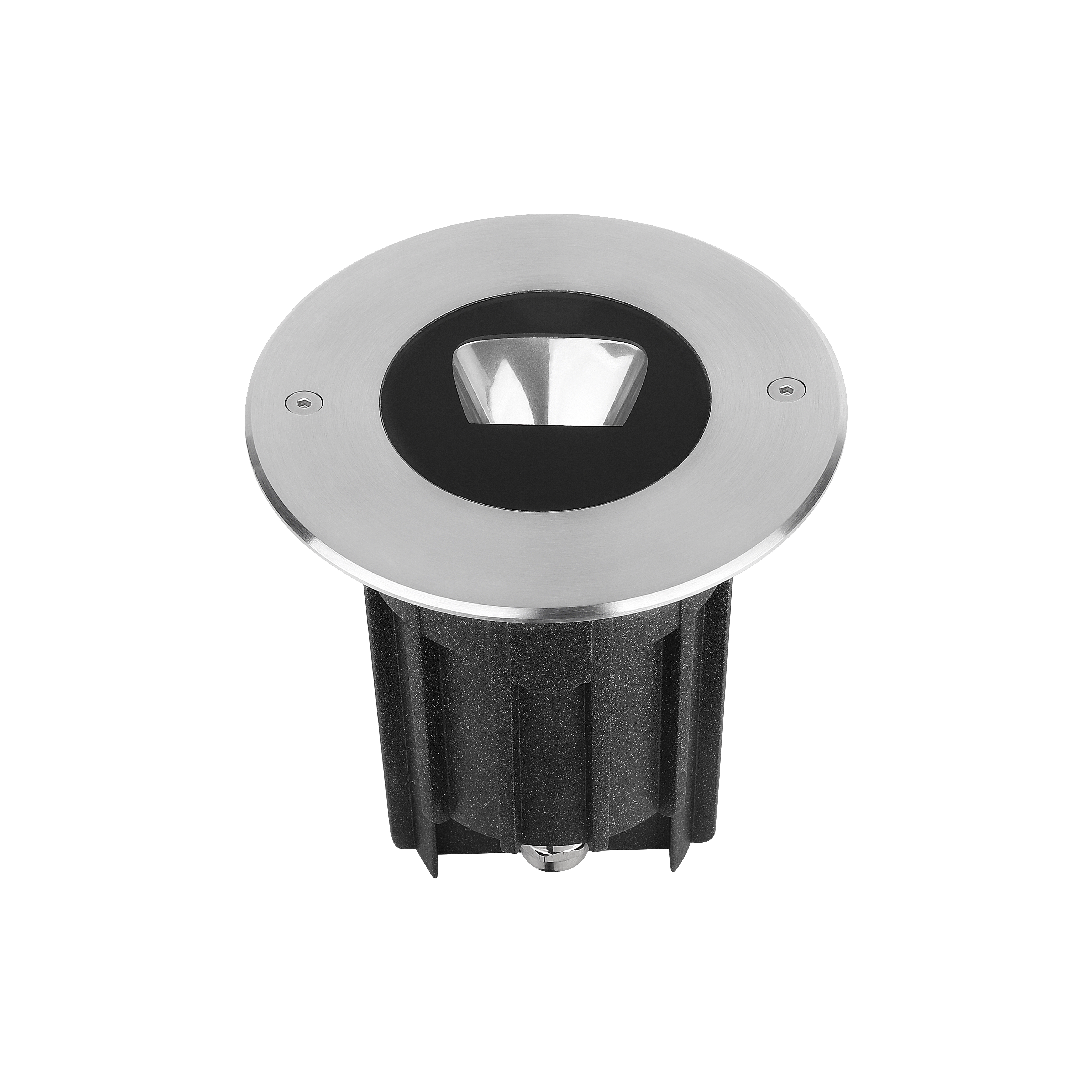

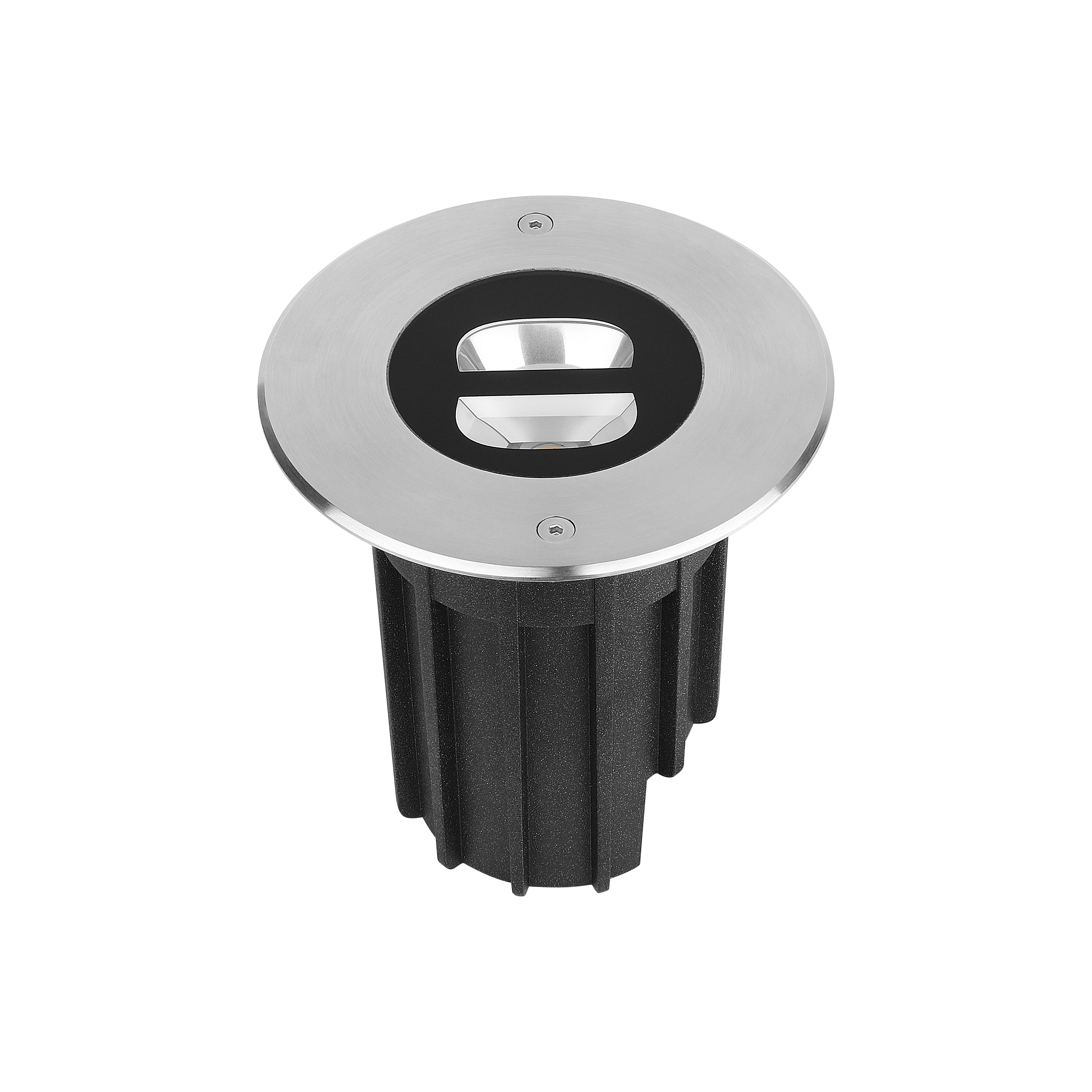

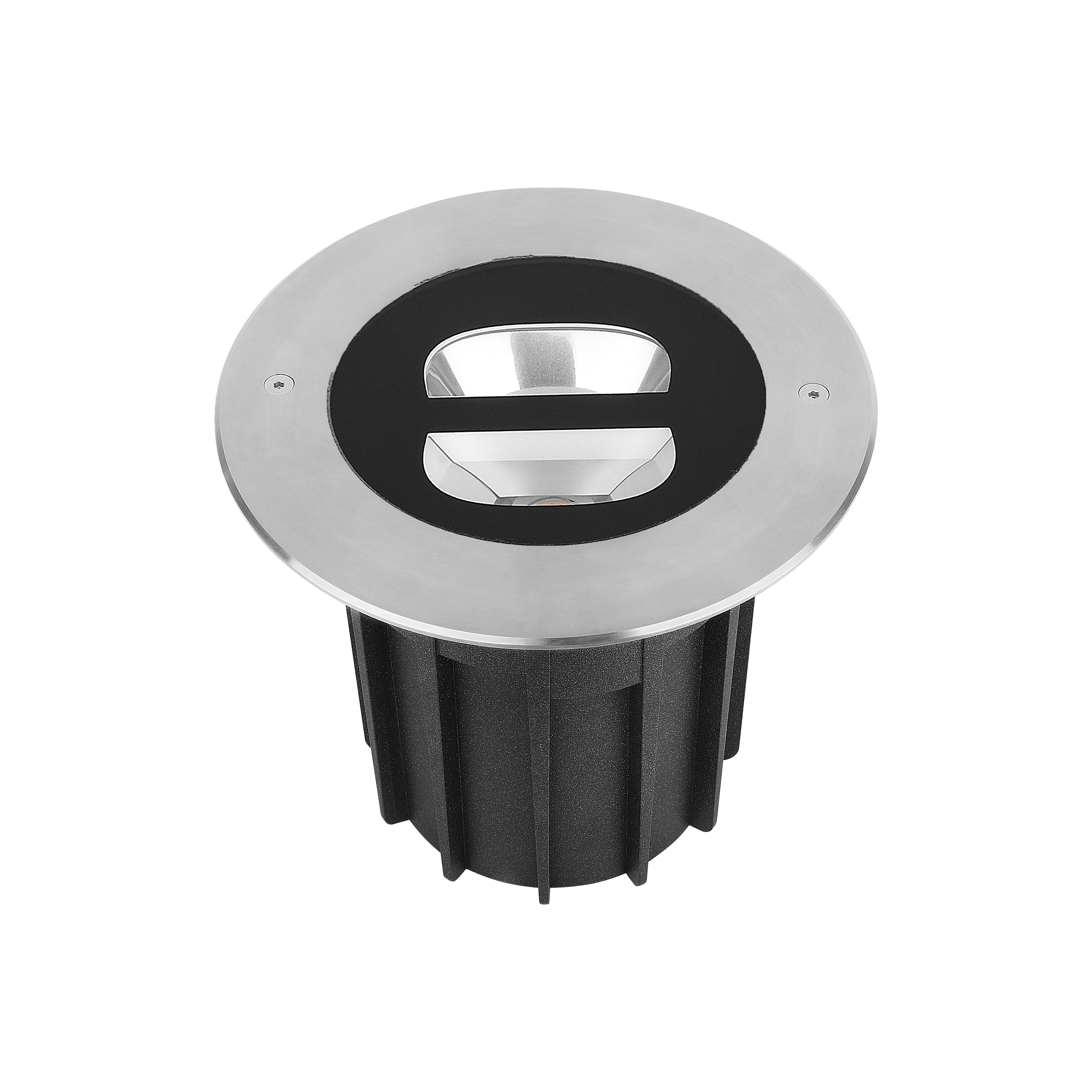

Zodiac series

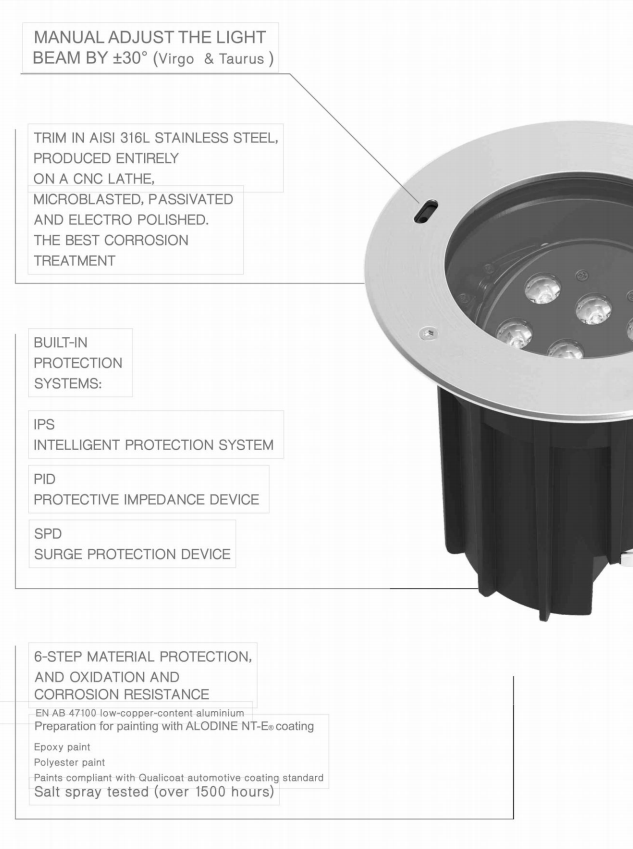

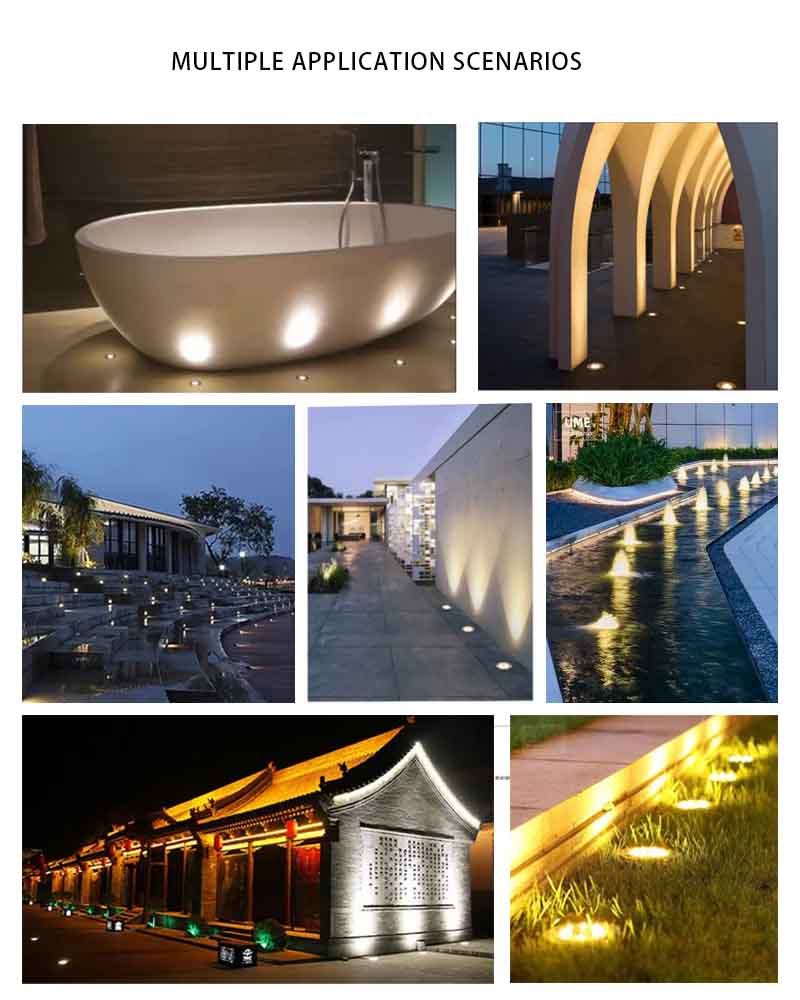

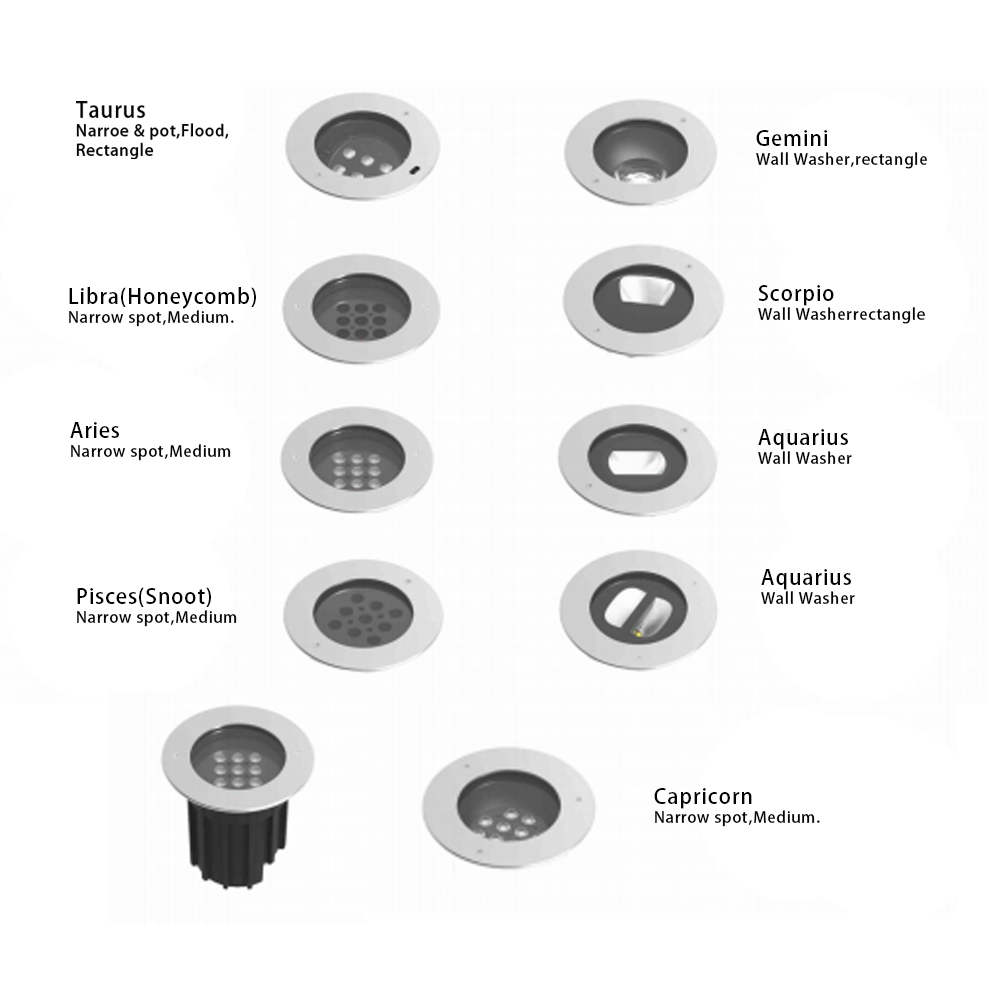

Zodiac series is an up-lights which is possible to manual adjust the lighting angle just right on the stainless steel front cover and it includes five different sizes with a wide range of optics. It is an ideal and flexible choice for lighting up large and small public spaces, building facade and trees with high performance.
High quality of Cree monocolor RGB, and RGBW LED sources with different lumens are the expression of versatility and performance.
For more detailed luminaire optical data or professional luminaire documents. Please contact us.
Taurus: 30*60° OPTICS ± 30° ADJUSTABLE ANGLE THROUGH A SMALL SCREWDRIVER INCLUDED WHEN ORDER MANUAL VERSION ( PATENTED )
