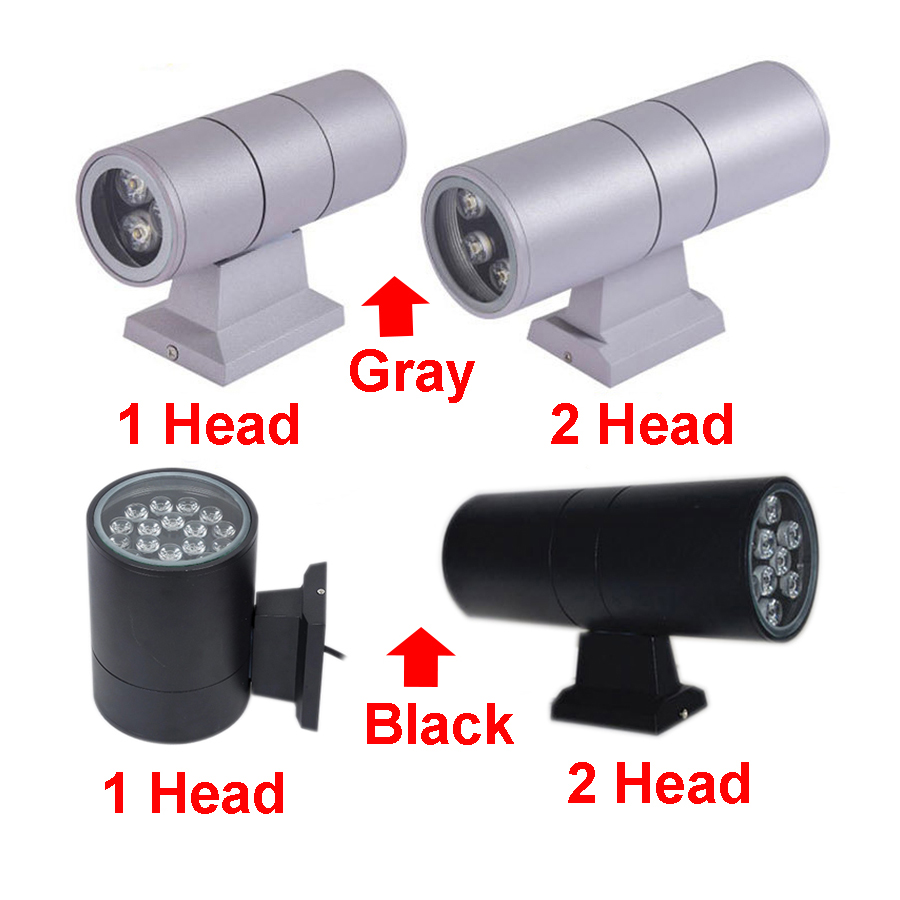

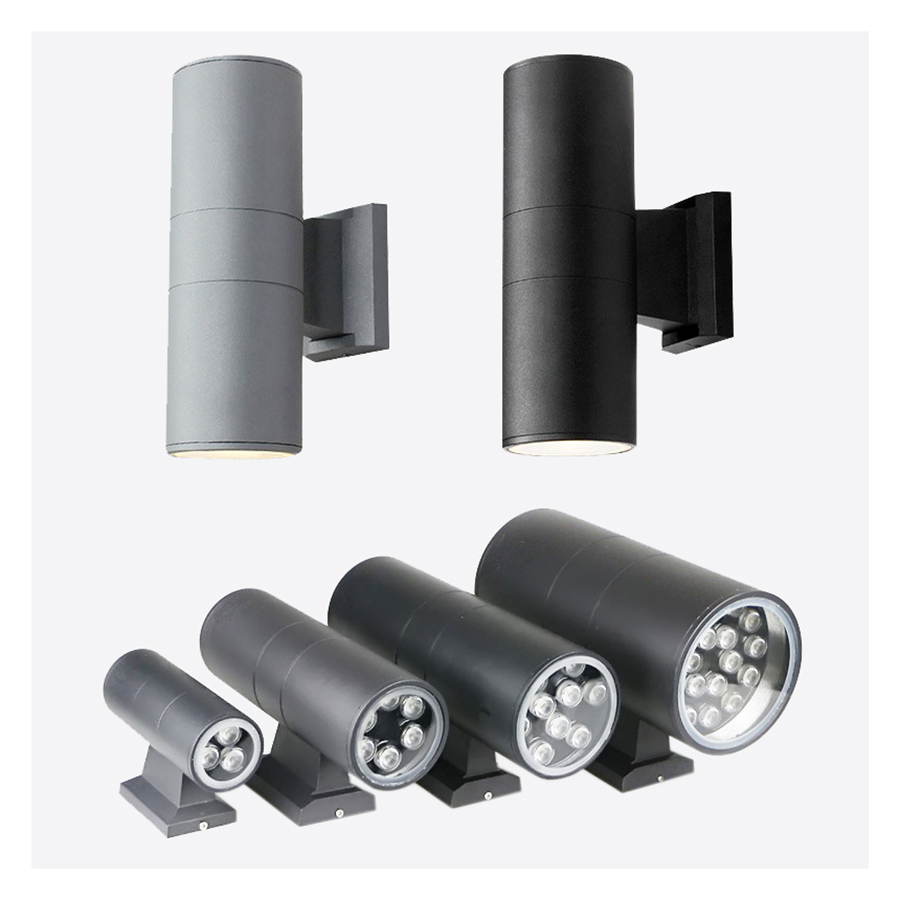

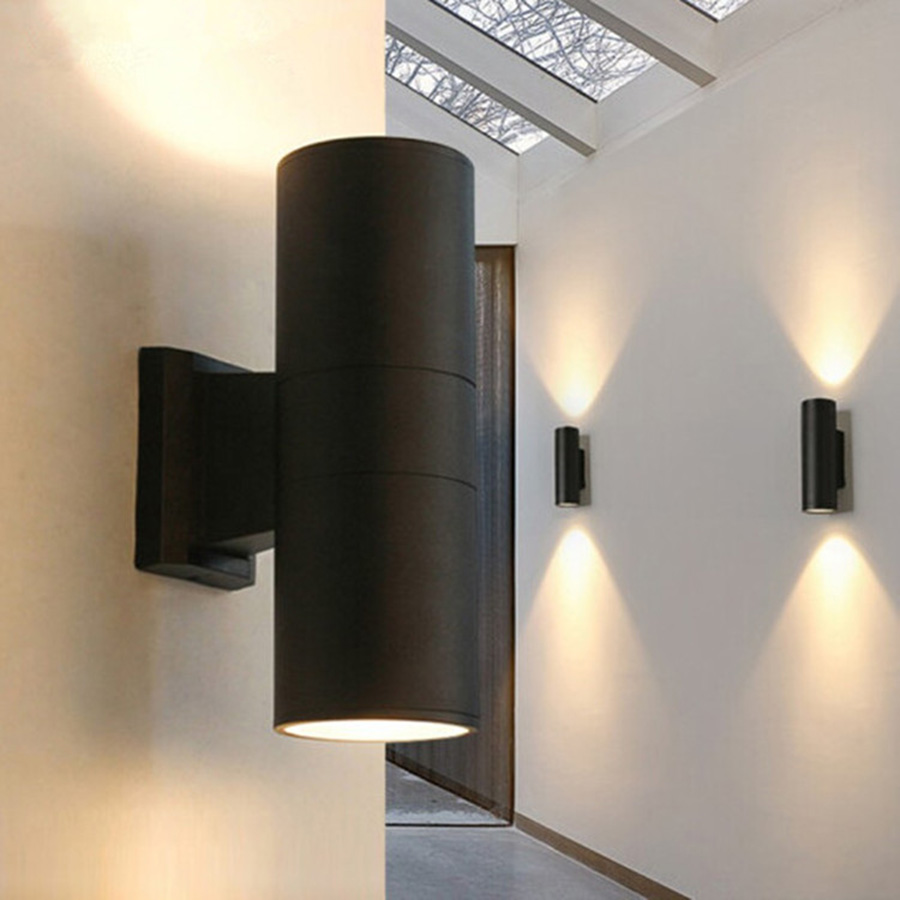

Outdoor Wall Lights Waterproof Aluminum Outdoor Wall Lamps Nordic Modern Decoration Ip65 up and Down LED Black Gray Wall Mounted

Product Description

Product Description
Outdoor up and down IP65 waterproof Aluminum housing led outdoor wall light 3w TO 48w
Item Led outdoor wall light IP65
Color Temperature(CCT) 2000-6500K (DMX512RGB/DMX512RGBW)
Lamp LuminousEfficiency(lm/W) 125lm/W
Color Rendering Index(Ra) 80
Life Span(Hours) 80000Hours
Light Source LED(Epistar/Bridgelux/Osram)
Input Voltage(V) AC85-265V
One Head Wattage(W) 1*3W(Φ65*H120mm) / 1*6W(Φ90*H160mm)
1*9/12W(Φ110*H200mm) / 1*15/18W(Φ145*H200mm)
1*24W(Φ160*H200mm) / 1*36W(Φ180*H200mm)
Two Head Wattage(W) 2*3W(Φ65*H160mm) / 2*6W(Φ90*H260mm)
2*9/12W(Φ110*H300mm) / 2*15/18W(Φ145*H300mm)
2*24W(Φ160*H300mm) / 2*36W(Φ180*H300mm)
Working Temperature -30℃ to 60℃
Lamp Body Material Aluminum
Ip Rating IP65 Waterproof
LEDs 1w Can be customized 2W/LED (1W 35 Mil / 2W 45 Mil)
Current 1W/LED 300ma+/-5% 2W/LED 600ma+/-5%
Beam angle 15°/30°/45°/60° Option (Default 30°)
Application Landscape, Building facades, Bridges, Stage, etc
Control On/Off/DMX-512 Protocol

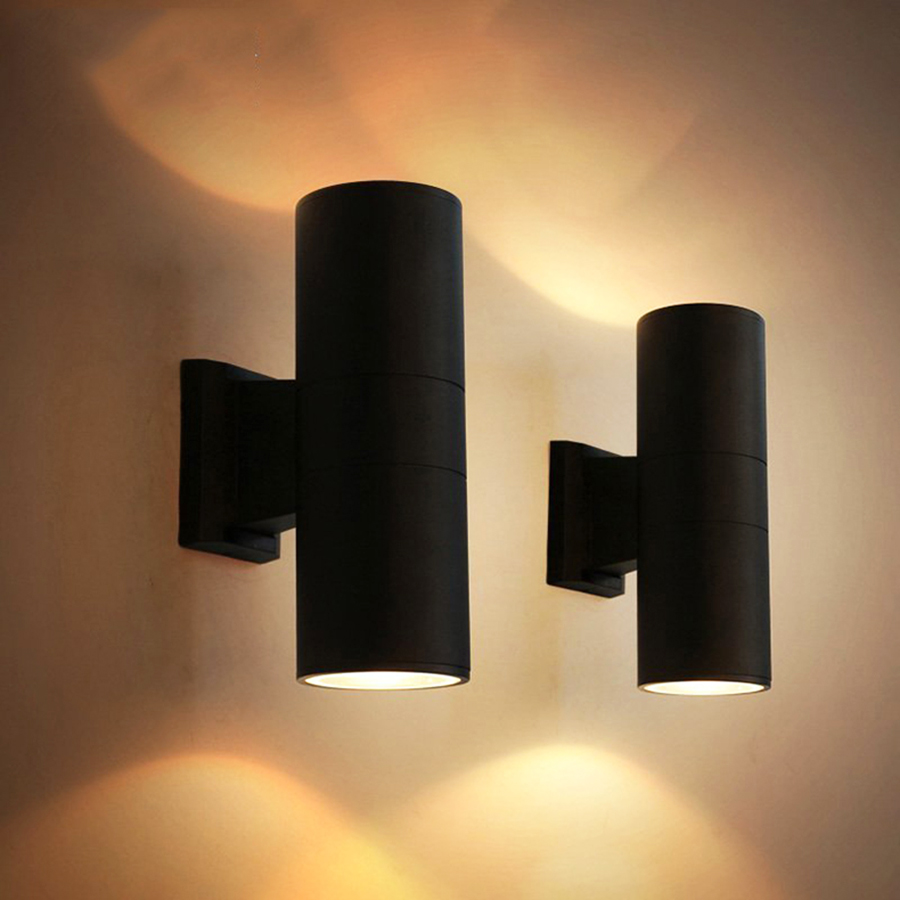

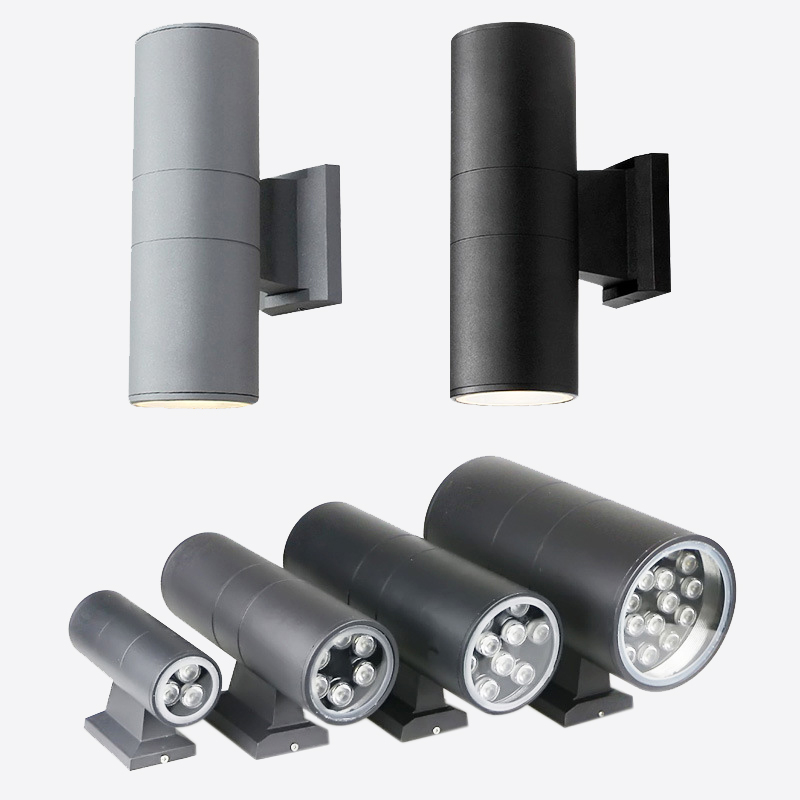

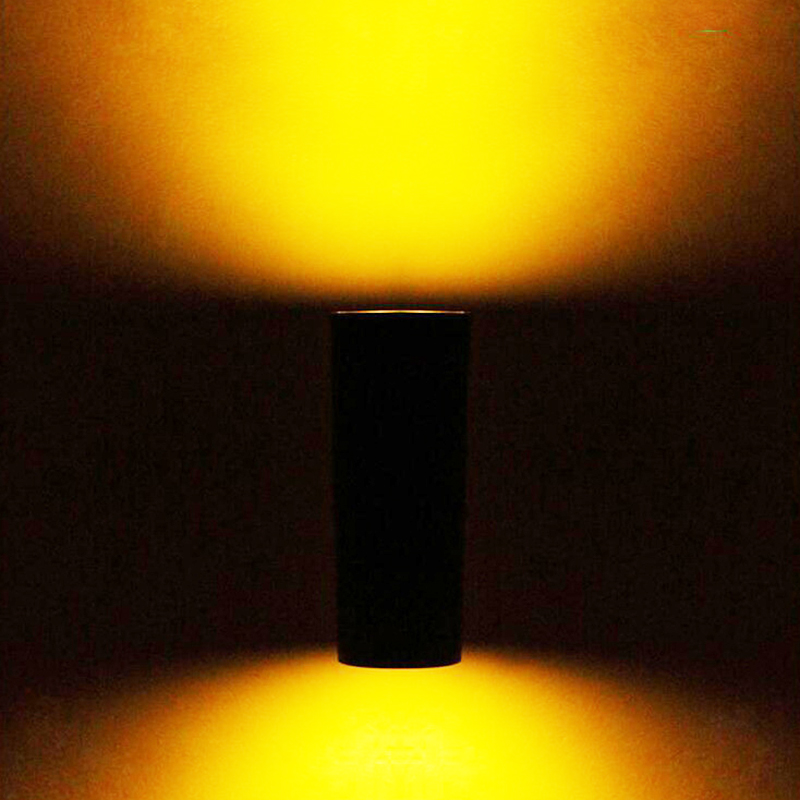

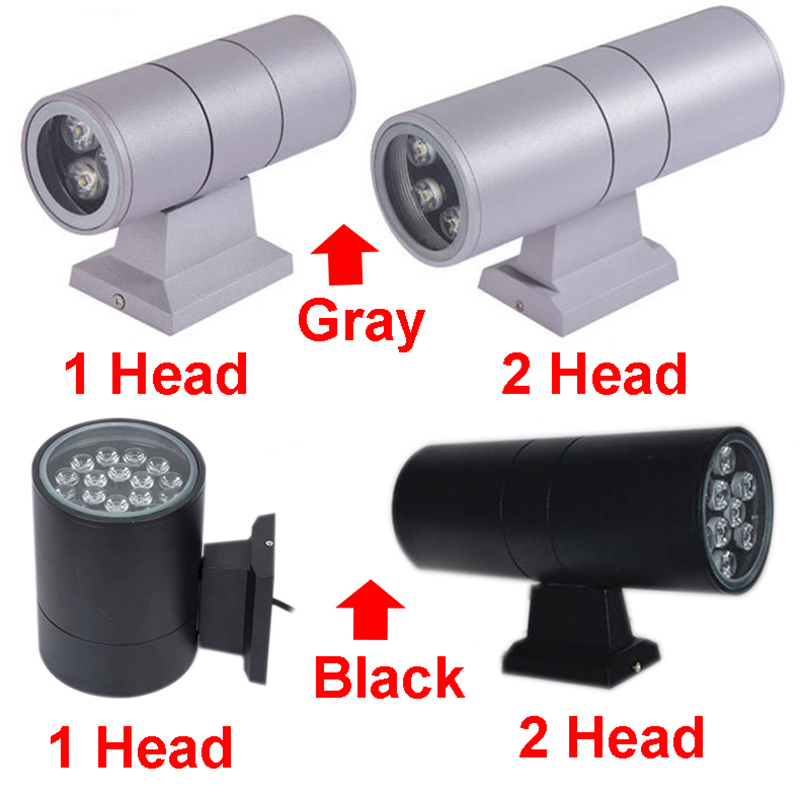

Product Image
Product Image

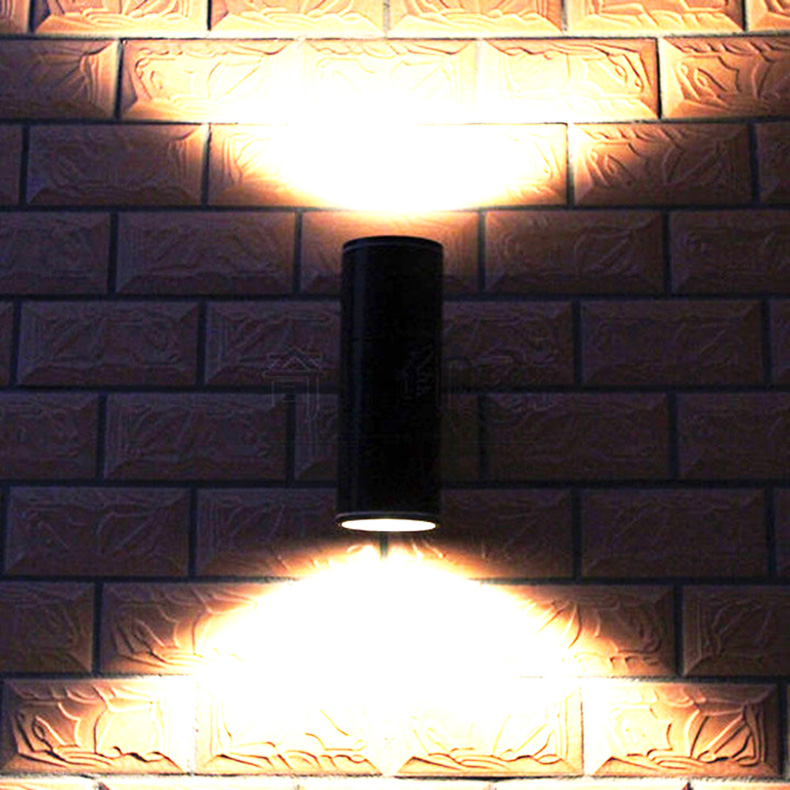

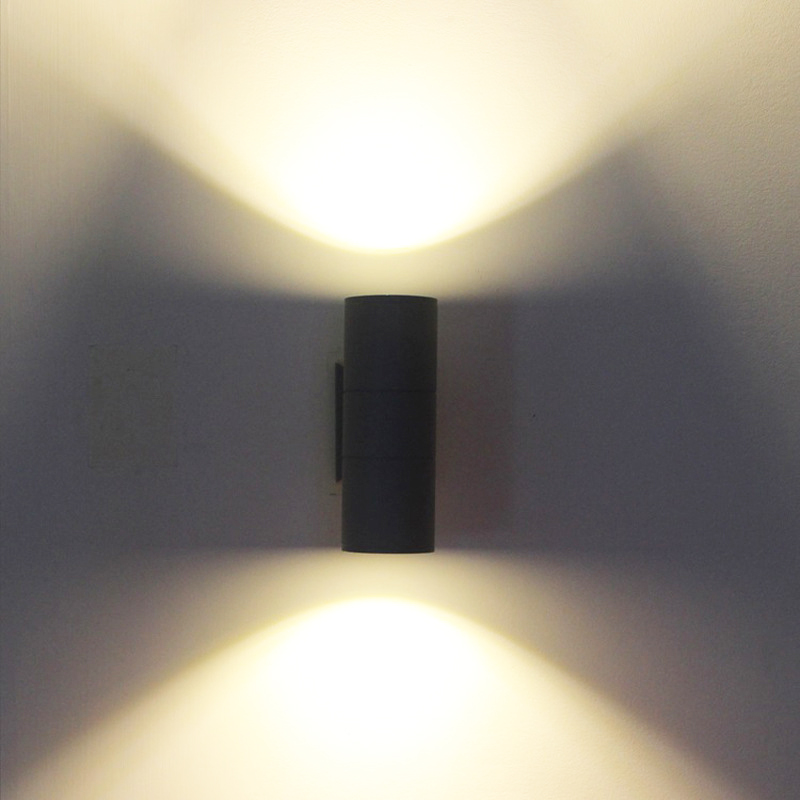

Product Detail Product Detail
Product Image

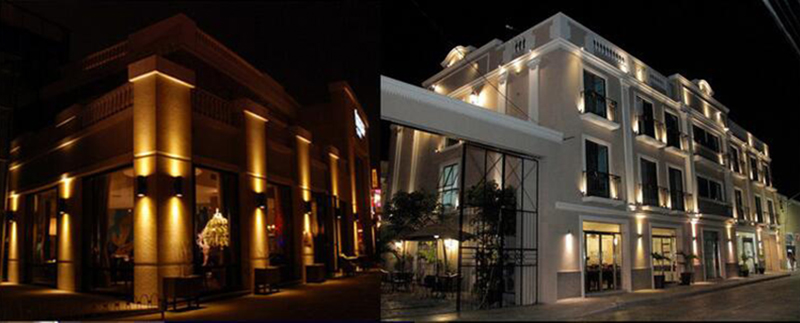

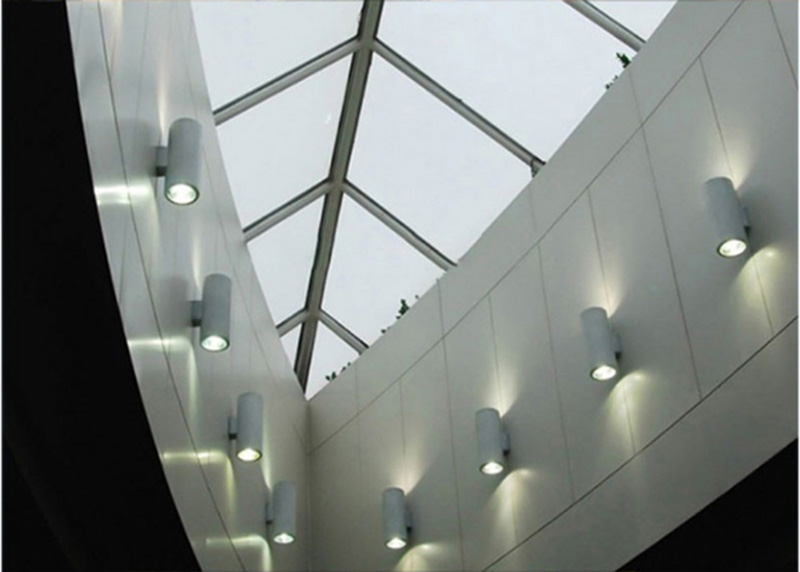

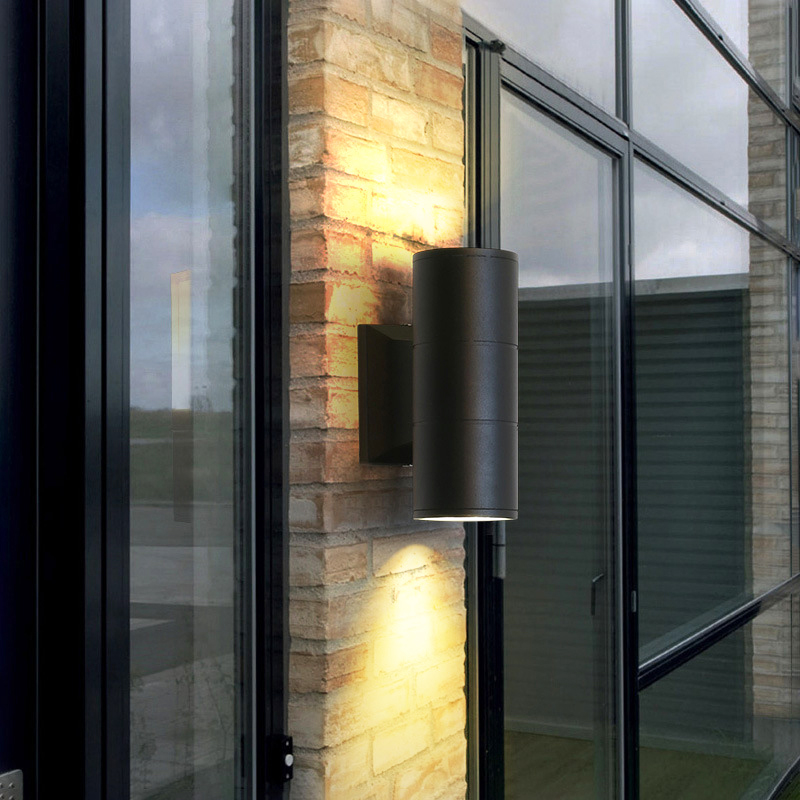

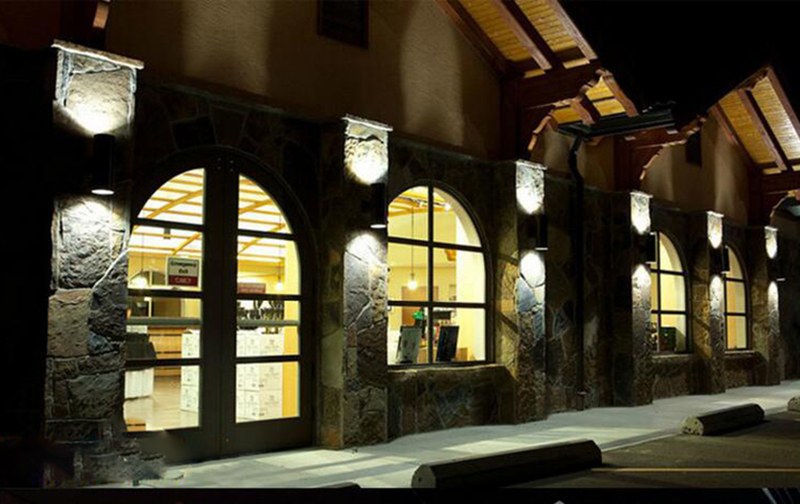

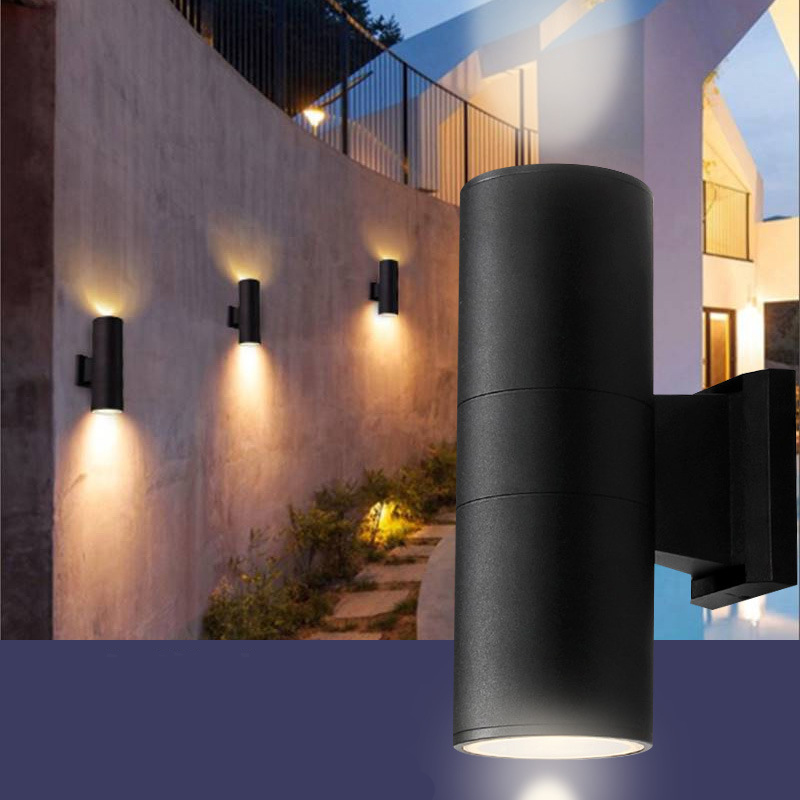

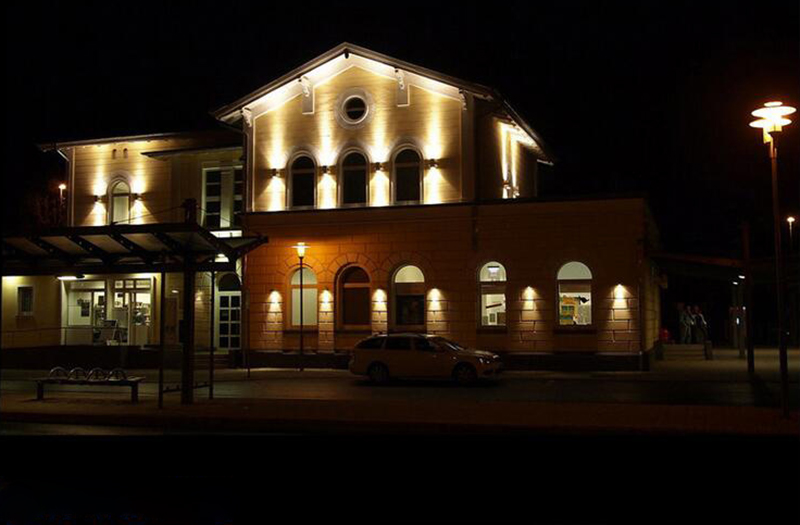

Exhibition

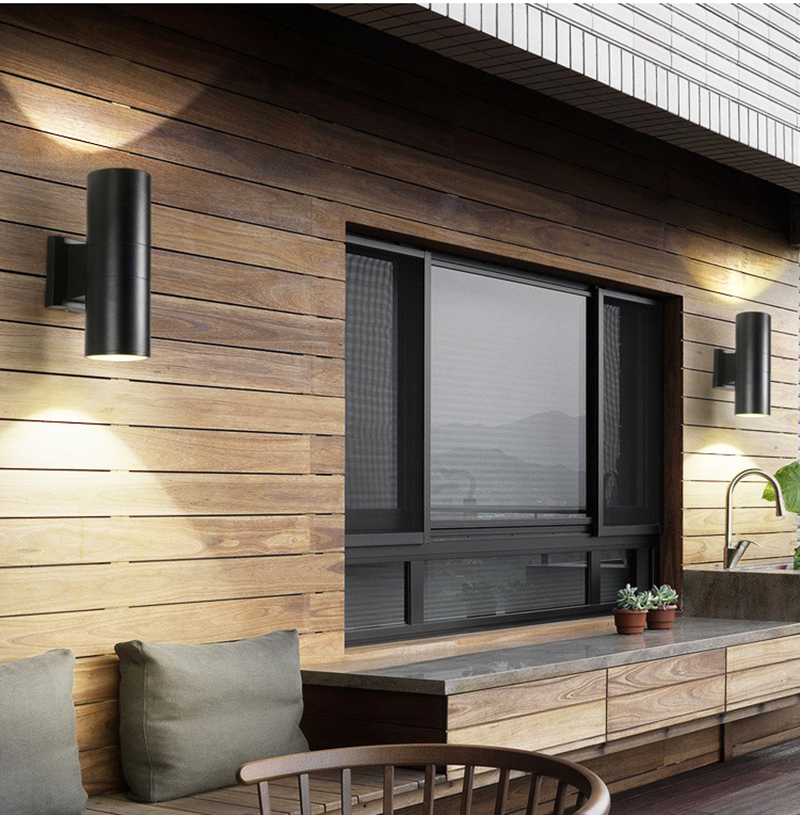

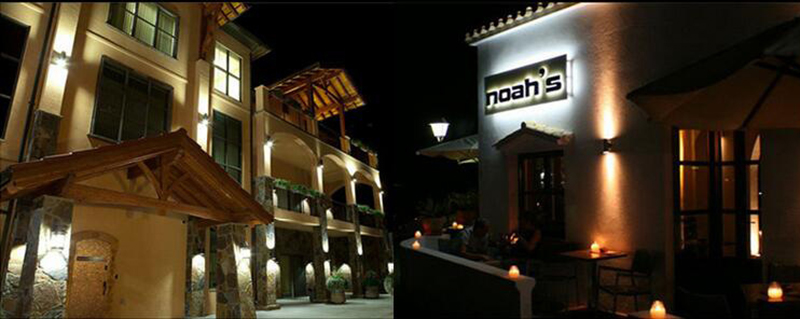

Exhibition Image Exhibition Image
Exhibition Image Exhibition Image
Exhibition Image Exhibition Image
Exhibition Image Exhibition Image
Product Presentation

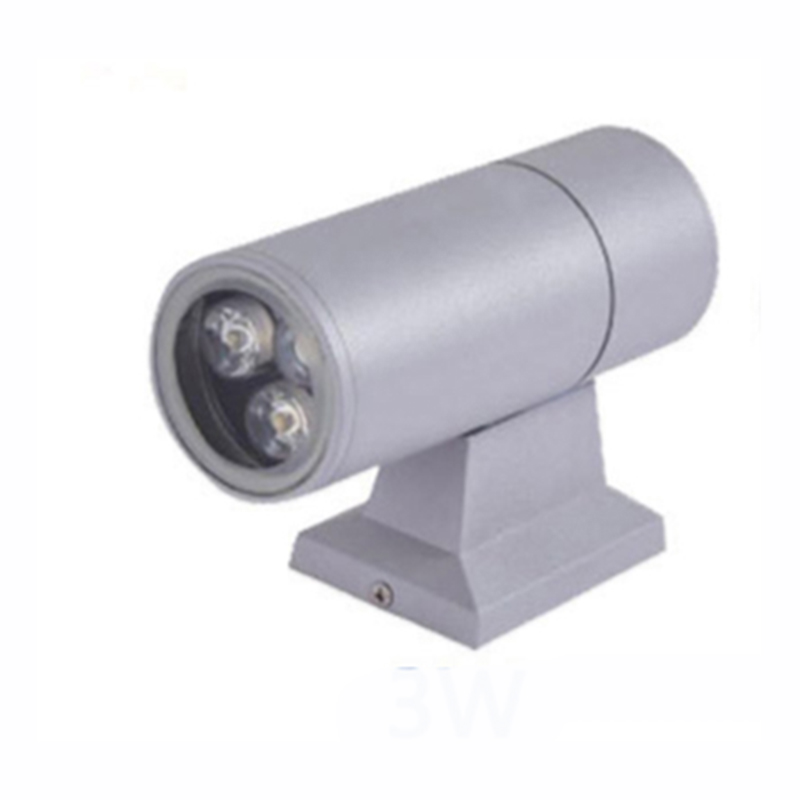

wtp-owl- 3w
wtp-owl- 3w
3*1W/3*2W
Φ65mm*H120mm
AC85-265V
IP66 Waterproof

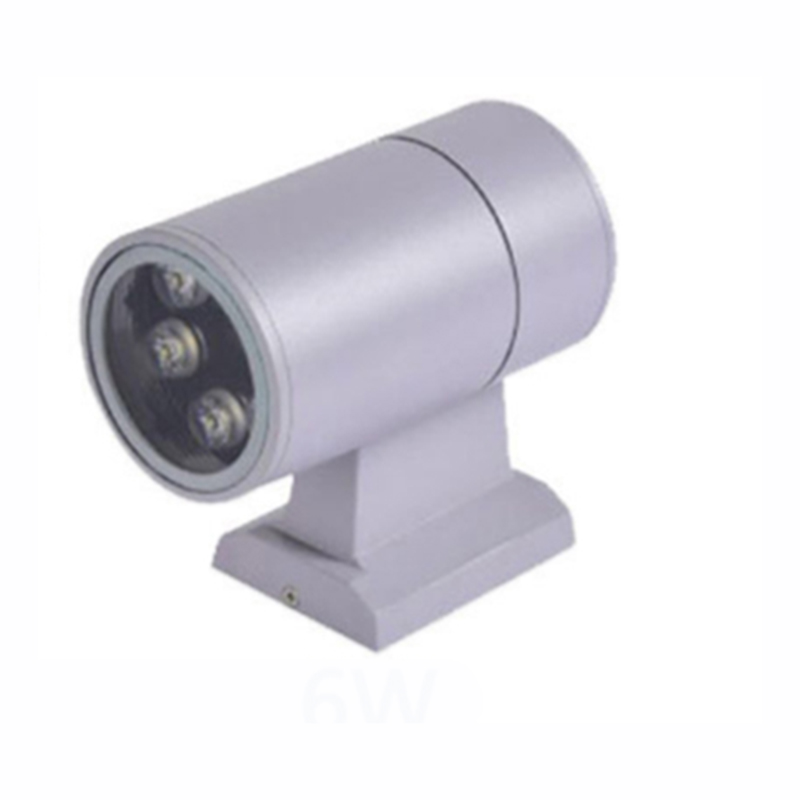

wtp-owl- 6w
wtp-owl- 6w
6*1W/6*2W
Φ90mm*H160mm
AC85-265V
IP66 Waterproof

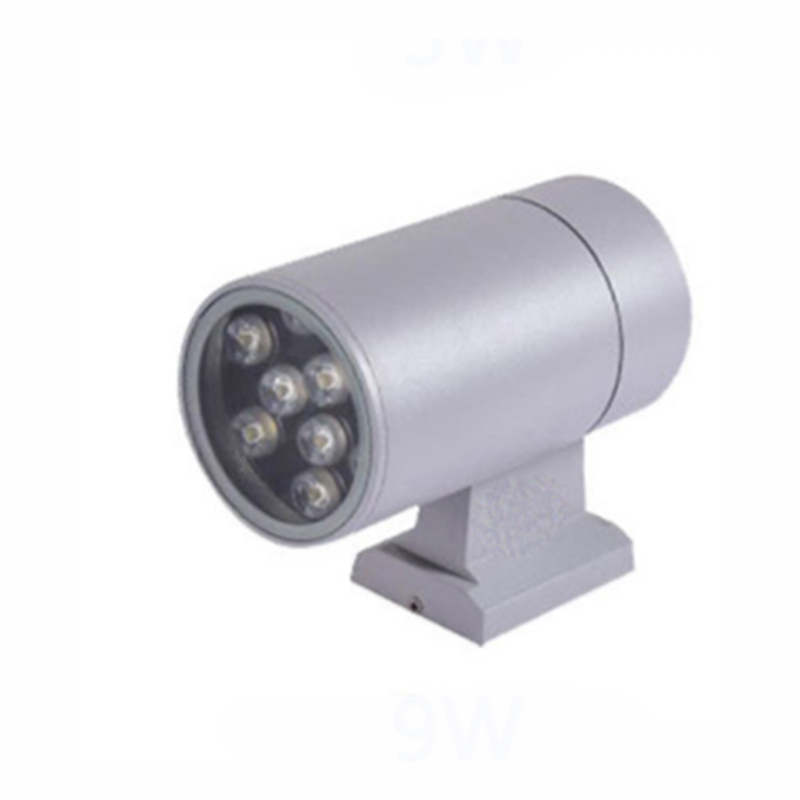

wtp-owl- 9w
wtp-owl- 9w
9*1W/9*2W
Φ108mm*H200mm
AC85-265V
IP66 Waterproof

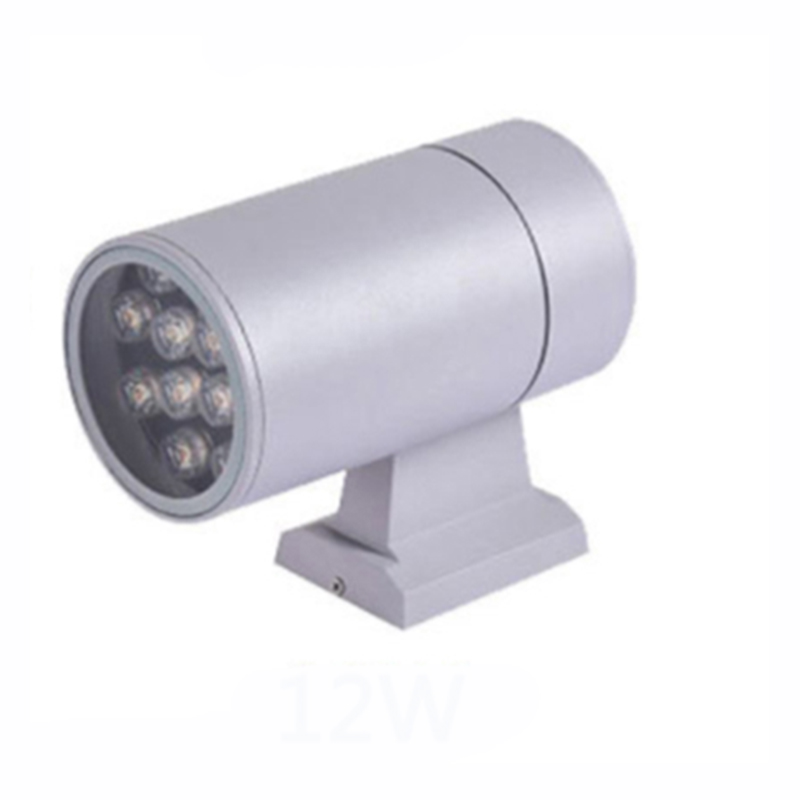

wtp-owl- 12w
wtp-owl- 12w
12*1W/12*2W
Φ110mm*H200mm
AC85-265V
IP66 Waterproof
wtp-owl- 15w
wtp-owl- 15w
15*1W/15*2W
Φ145mm*H200mm
AC85-265V
IP66 Waterproof
wtp-owl- 18w
wtp-owl- 18w
18*1W/18*2W
Φ145mm*H200mm
AC85-265V
IP66 Waterproof
wtp-owl- 24w
wtp-owl- 24w
24*1W/24*2W
Φ160mm*H200mm
AC85-265V
IP66 Waterproof
wtp-owl- 6w
wtp-owl- 6w
2*3*1W/2*3*2W
Φ65mm*H160mm
AC85-265V
IP66 Waterproof
USD:$8.6

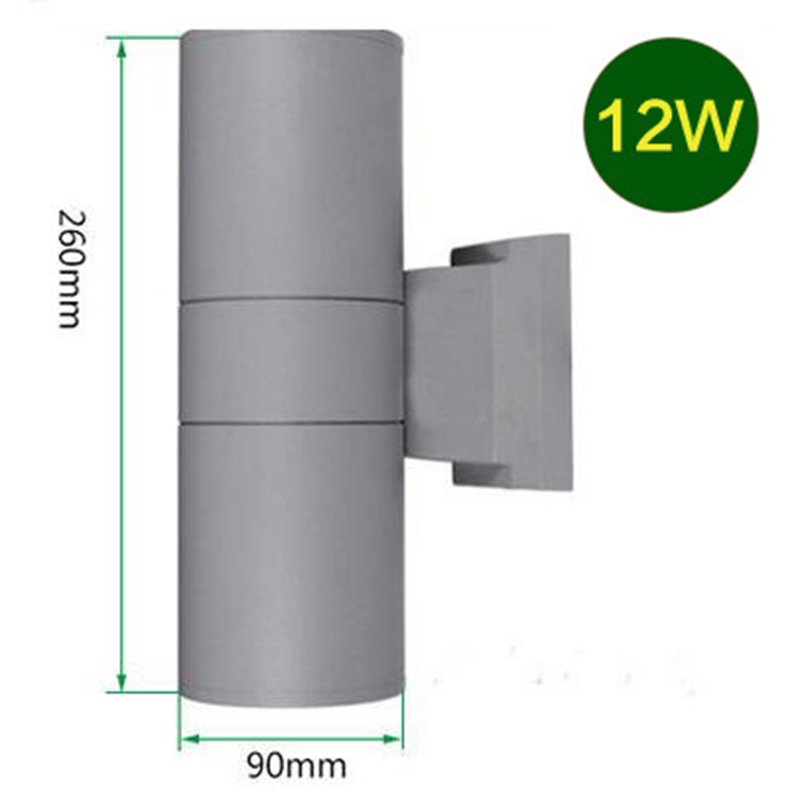

wtp-owl- 12w
wtp-owl- 12w
2*6*1W/2*6*2W
Φ90mm*H260mm
AC85-265V
IP66 Waterproof
USD:$13.8

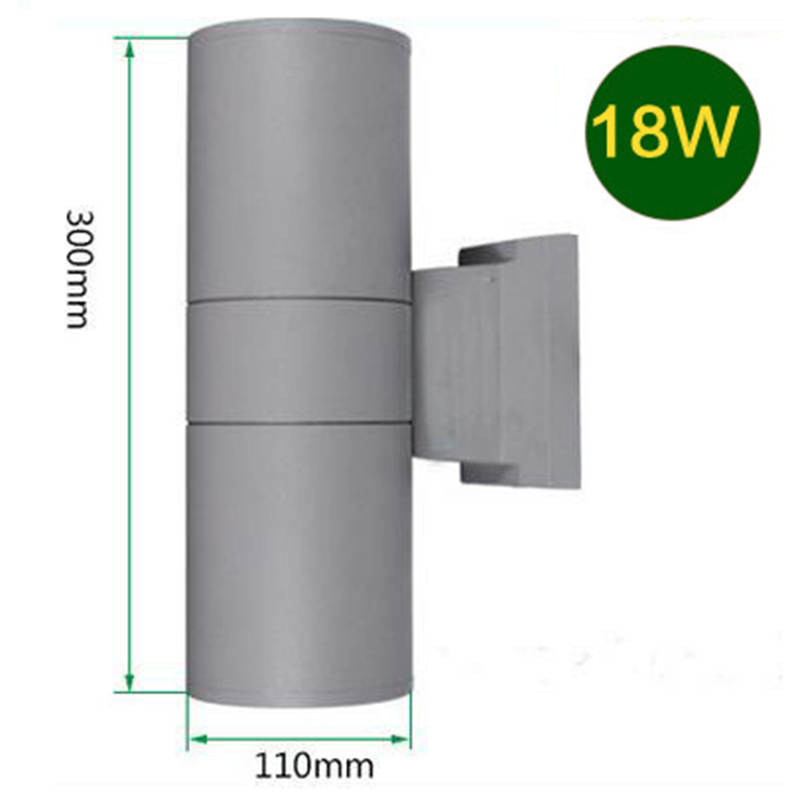

wtp-owl- 18w
wtp-owl- 18w
2*9*1W/2*9*2W
Φ108mm*H300mm
AC85-265V
IP66 Waterproof
wtp-owl- 24w
wtp-owl- 24w
2*12*1W/2*12*2W
Φ108mm*H300mm
AC85-265V
IP66 Waterproof
wtp-owl- 36w
wtp-owl- 36w
2*18*1W/2*18*2W
Φ145mm*H300mm
AC85-265V
IP66 Waterproof

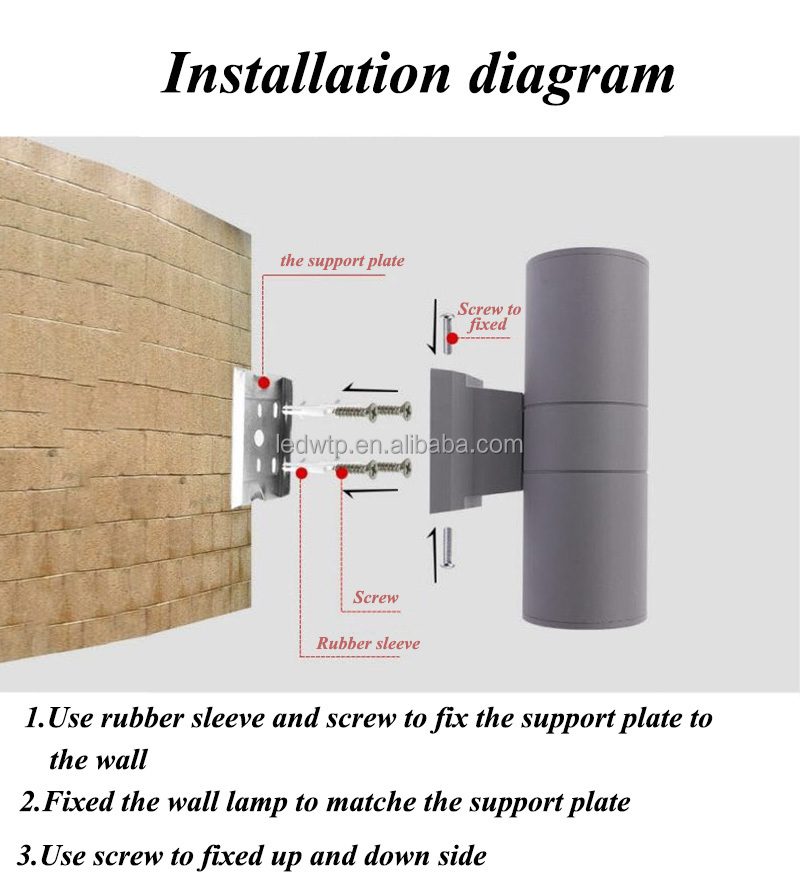

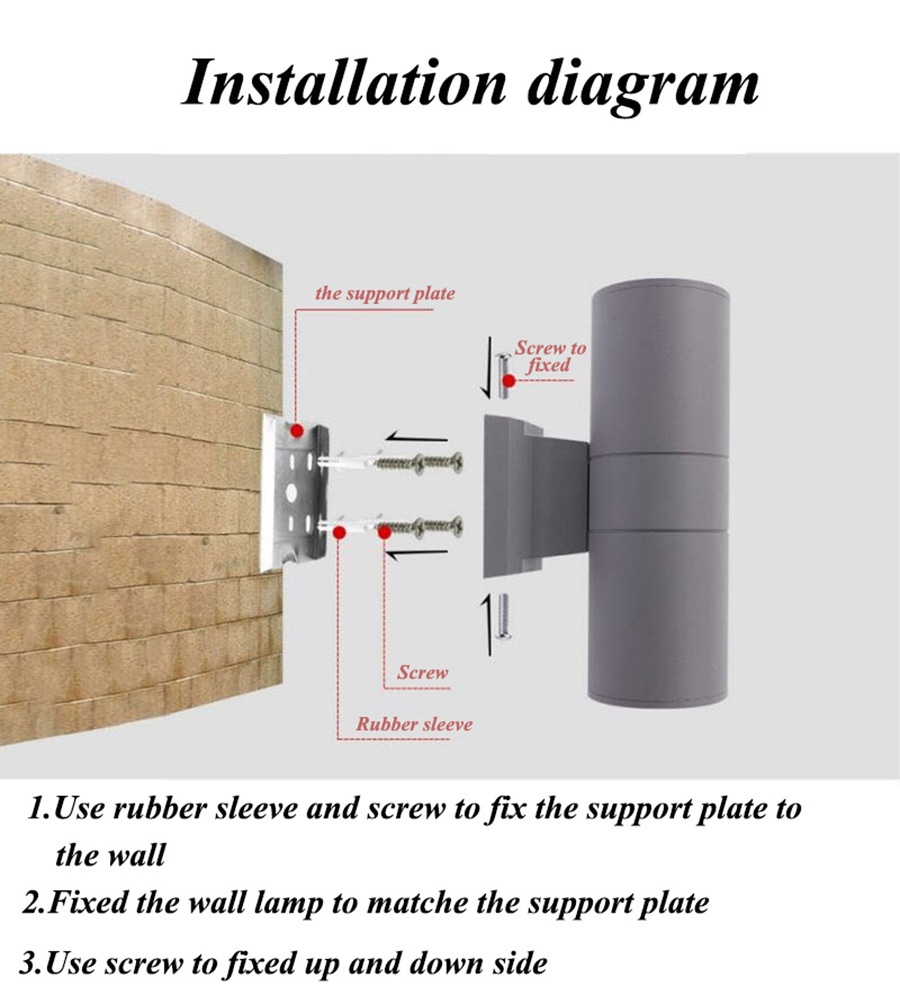

Installation Instructions
Installation Instructions
Certificate
Certificate 1 Certificate 2 Certificate 3
Related Products

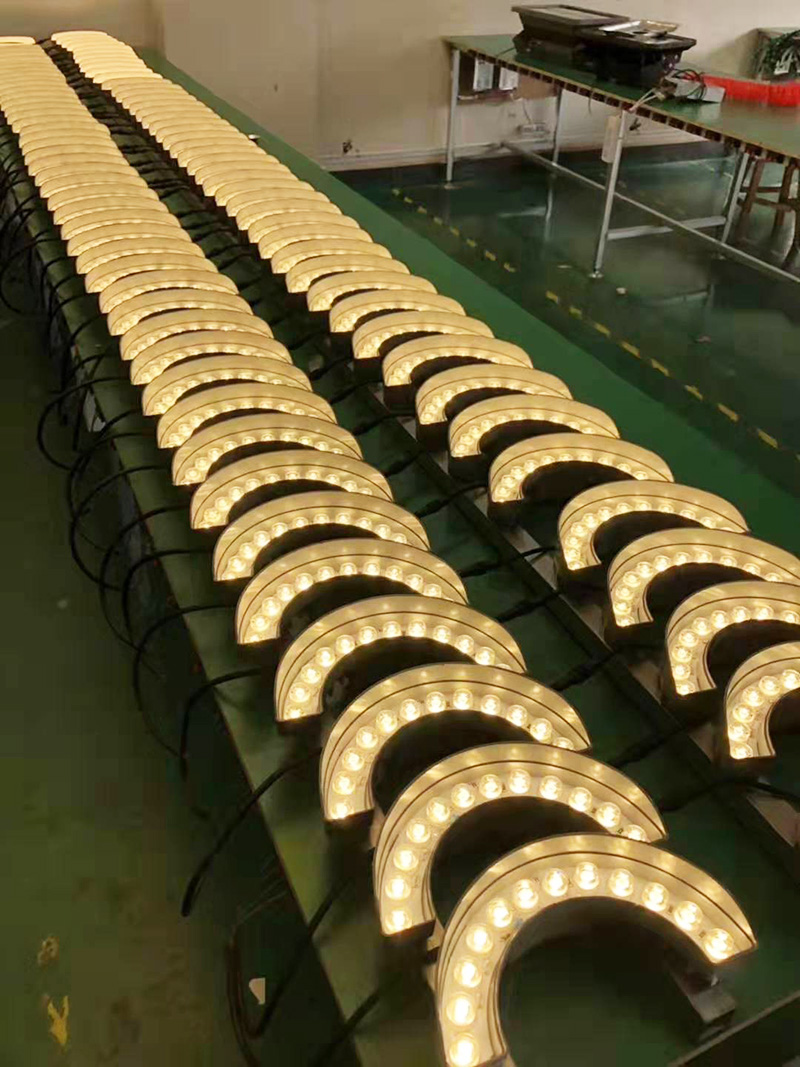

Company Introduction

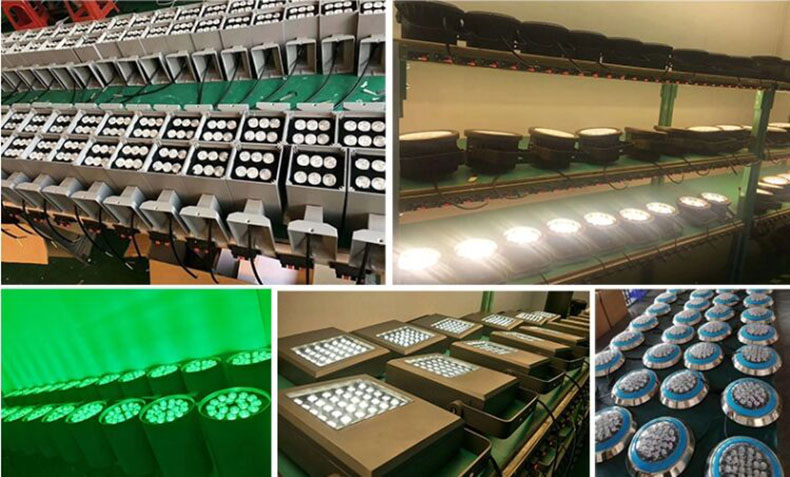

Company Introduction 1

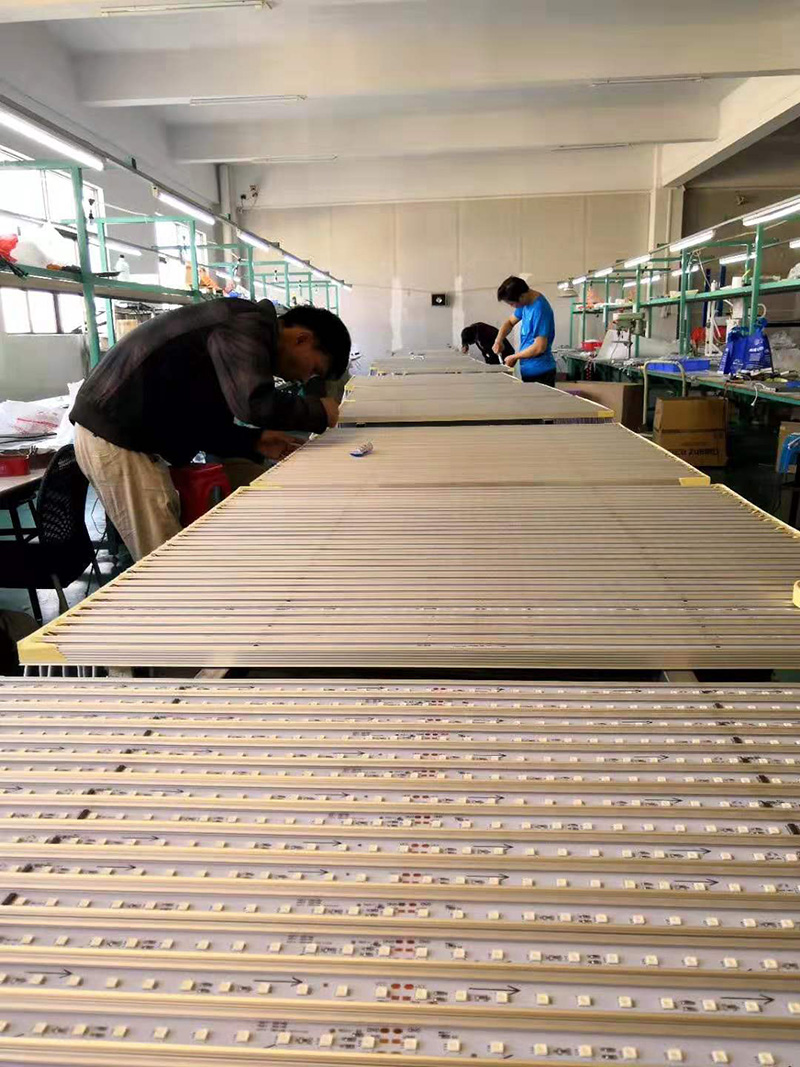

Company Introduction 2 Company Introduction 3
Packing & Shipping
Packing & Shipping
Frequently Asked Questions
What is the waterproof rating of this outdoor wall light?
This outdoor wall light is built with high-quality waterproofing, rating at IP65 (with some presentation variations up to IP66), making it completely secure and functional for outdoor environments exposed to rain and dust.
What type of voltage and control system is supported?
It supports a wide input voltage range of AC85-265V and can be configured with standard On/Off controls or integrated with the DMX-512 Protocol.
What is the expected lifespan and efficiency of the light?
Equipped with premium Epistar, Bridgelux, or Osram LEDs, the light offers an exceptional lifespan of up to 80,000 hours with an outstanding luminous efficiency of 125lm/W.
Can the beam angle be customized for specific lighting layouts?
Yes. While the default configuration is a 30° beam angle, options for 15°, 45°, and 60° are available to suit custom facade or landscape layouts.
What material is used for the housing?
The lamp body is constructed from durable, corrosion-resistant Aluminum housing, offering robust protection and effective heat dissipation for outdoor conditions.
